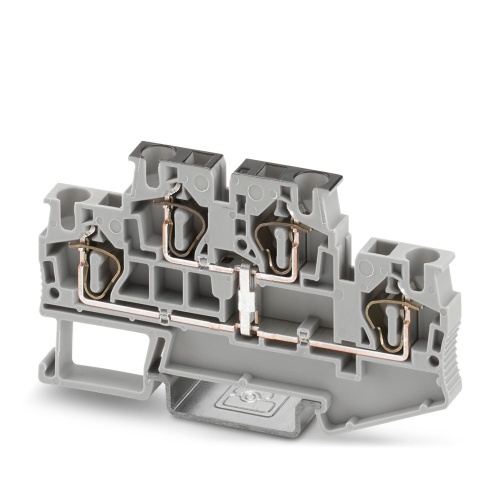

Phoenix Contact 3031542 Double-level terminal block STTB 4-PV
Normally In Stock
Code: 63595
STTB 4-PV Phoenix 3031542 Multi-level terminal block Spring-cage connection 500 V 30 Amp gray Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$11.45
Sale Price
$9.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

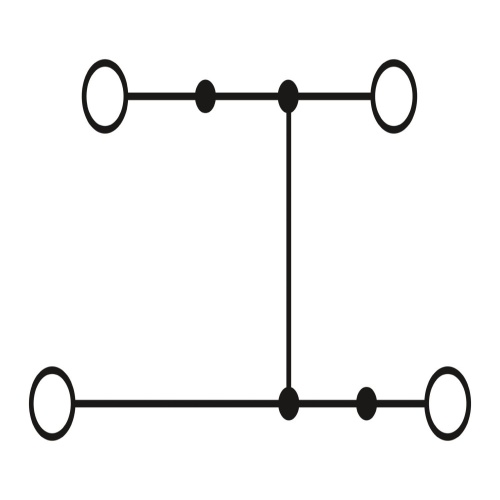

Phoenix Contact 3031542 A double-level terminal block with an equipotential bonder features a nominal voltage of 500 V and a maximum current rating of 30 A, utilizing a spring-cage connection for both levels. The rated cross-sectional area is 4 mm2, allowing for connections ranging from 0.08 mm2 to 6 mm2 in size. Mounting options include NS 35/7,5 and NS 35/15, with the terminal block itself being gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Connections
4
Terminal Block Number of Levels
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
30 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Sub Component
Double-Level Terminal Block
Features
Compact design for maximum space savings
Connect the levels using FBS ...-PV bridges
Tested for railway applications
