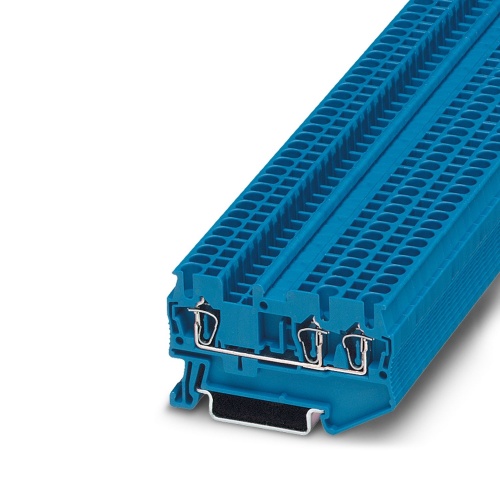

Phoenix Contact 3031254 Feed-through terminal block ST 2,5-TWIN BU
Normally In Stock
Code: 63526
ST 2,5-TWIN BU Phoenix 3031254 Multi-conductor terminal block Spring-cage connection 800 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.20
Sale Price
$1.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031254 A feed-through terminal block with a nominal voltage of 800 V and a maximum current capacity of 24 A is available for connection. It features three connections made via spring-cage connections, with rated cross-sectional areas ranging from 0.08 mm2 to 4 mm2. The mounting type is provided in two options, NS 35/7.5 and NS 35/15, while the terminal block itself has a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
User-friendly implementation of all potential branching tasks
Tested for railway applications
Space-saving and practical multi-conductor connection without additional bridges
Downloads
Phoenix 3031254 CAD data International.dxfPhoenix 3031254 CAD data International.pdfPhoenix 3031254 CAD data International.stpPhoenix 3031254 Certification English-2.pdfPhoenix 3031254 Certification English.pdfPhoenix 3031254 Data Sheet English.pdfPhoenix 3031254 Manufacturers declaration International-2.pdfPhoenix 3031254 Manufacturers declaration International.pdfPhoenix 3031254 Safety note English.pdfPhoenix 3031254 Tender Text English.zipPhoenix 3031254 User instructions for the Ex Area International.pdf
