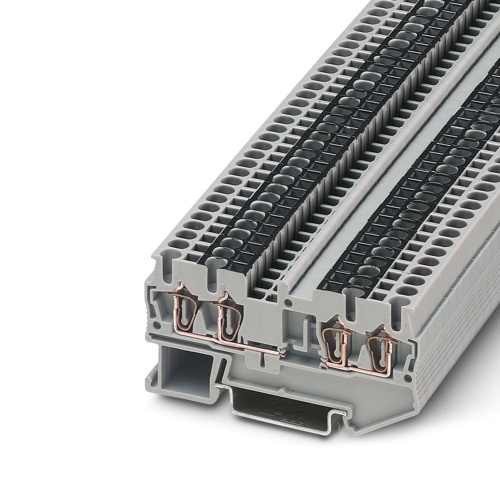

Phoenix Contact 3031636 Feed-through terminal block ST 2,5-QUATTRO-U
Normally In Stock
Code: 63524
ST 2,5-QUATTRO-U Phoenix 3031636 Multi-conductor terminal block Spring-cage connection 800 V 22 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.32
Sale Price
$2.77
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031636 The feed-through terminal block features a nominal voltage of 800V and a nominal current rating of 22A, accommodating up to four connections via spring-cage connection method. The rated cross-sectional area is 2.5mm², with variations between 0.08mm² and 4mm², and can be mounted using the NS35/7.5 or NS35/15 mounting type, while its color is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Component
Terminal Block
Manufacturer
Phoenix Contact
Terminal Block Amperage
22 Amp
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Double marker carriers can be used to clearly mark the feed-through levels
These four-conductor spring-cage terminal blocks feature an interrupted power rail in the terminal center
Downloads
Phoenix 3031636 CAD data International.dxfPhoenix 3031636 CAD data International.pdfPhoenix 3031636 CAD data International.stpPhoenix 3031636 Data Sheet English.pdfPhoenix 3031636 Manufacturers declaration International.pdfPhoenix 3031636 Safety note English.pdfPhoenix 3031636 Tender Text English.zip
