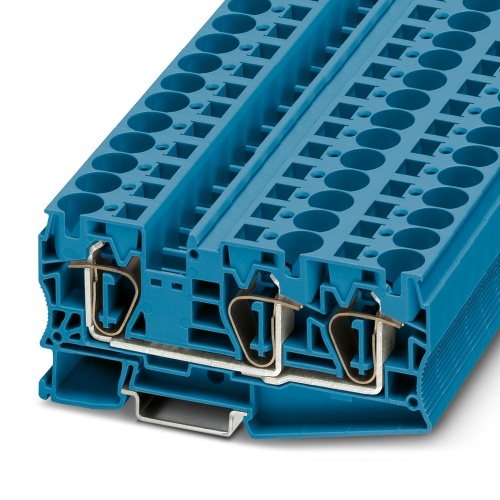

Phoenix Contact 3035331 Feed-through terminal block ST 16-TWIN BU
Normally In Stock
Code: 63522
ST 16-TWIN BU Phoenix 3035331 Multi-conductor terminal block Spring-cage connection 1000 V 76 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$7.15
Sale Price
$5.96
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035331 The feed-through terminal block has a nominal voltage of 1000 V and a nominal current rating of 76 A, accommodating three connections using the spring-cage connection method. The rated cross-sectional area is 16 mm2, spanning from 0.2 mm2 to 25 mm2, while it can be mounted using the NS 35/15 or NS 35/7.5 mounting types and features a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
12.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Max Wire Size
4
Terminal Block Amperage
76 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The ST ...‑TWIN three-conductor spring cage terminal blocks are a space-saving alternative to standard feed-through terminal blocks where potential distribution with conductor cross sections of 10 and 16 mm² is required
The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
Ideal as potential distributors in ring feeder systems
Terminal blocks with a nominal cross section of 2.5 or 4 mm² can be combined without additional wiring effort using the RB ST...(2,5/4) reducing bridge
