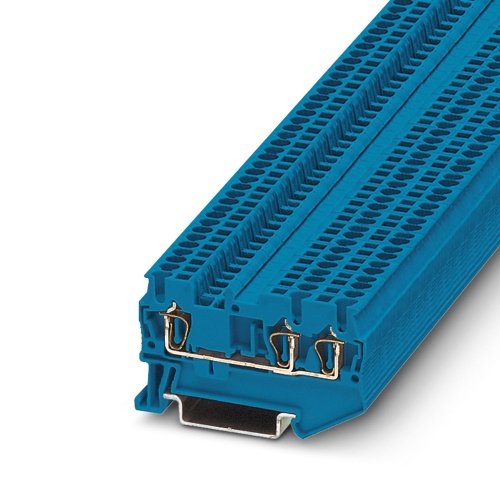

Phoenix Contact 3031131 Feed-through terminal block ST 1,5-TWIN BU
Normally In Stock
Code: 63521
ST 1,5-TWIN BU Phoenix 3031131 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.86
Sale Price
$1.55
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031131 A feed-through terminal block is available with a nominal voltage of 500 V and a maximum current rating of 17.5 A, accommodating three connections secured via spring-cage technology. The cross-sectional area of the rated conductor is 1.5 mm², spanning from 0.08 mm² to 1.5 mm² in size, and can be mounted using either NS 35/7,5 or NS 35/15 types, with a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
User-friendly implementation of all potential branching tasks
Tested for railway applications
Space-saving and practical multi-conductor connection without additional bridges
Downloads
Phoenix 3031131 User instructions for the Ex Area International.pdfPhoenix 3031131 Tender Text English.zipPhoenix 3031131 Safety note English.pdfPhoenix 3031131 Manufacturers declaration International.pdfPhoenix 3031131 Manufacturers declaration International-2.pdfPhoenix 3031131 Certification English-2.pdfPhoenix 3031131 CAD data International.stpPhoenix 3031131 CAD data International.pdfPhoenix 3031131 CAD data International.dxf
