Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

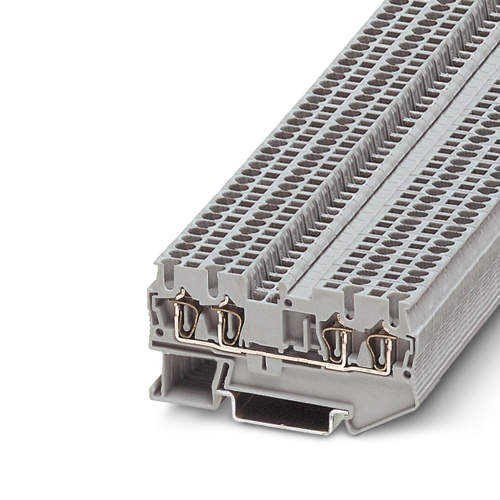

Phoenix Contact 3031186 Feed-through terminal block ST 1,5-QUATTRO
Normally In Stock
Code: 63518
ST 1,5-QUATTRO Phoenix 3031186 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.17
Sale Price
$1.81
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031186 The terminal block has a nominal voltage of 500 V and can handle up to 17.5 A of current with 4 connections made using spring-cage connectors. The cross-sectional area ranges from 0.08 mm2 to 1.5 mm2, with rated connections available in sizes NS 35/7,5 and NS 35/15, all of which have a standard mounting type of NS 35/7,5 and are typically gray in color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Cross connection to any number of terminal blocks with the consistent FBS ... plug-in bridge system
Compact potential distributors, the double connection enables four conductors to be connected on one potential
Tested for railway applications
Downloads
Phoenix 3031186 CAD data International.dxfPhoenix 3031186 CAD data International.pdfPhoenix 3031186 CAD data International.stpPhoenix 3031186 CAD data International.wrlPhoenix 3031186 Certification English-2.pdfPhoenix 3031186 Data Sheet English.pdfPhoenix 3031186 Manufacturers declaration International-2.pdfPhoenix 3031186 Manufacturers declaration International.pdfPhoenix 3031186 Safety note English.pdfPhoenix 3031186 Tender Text English.zipPhoenix 3031186 User instructions for the Ex Area International.pdf
