Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

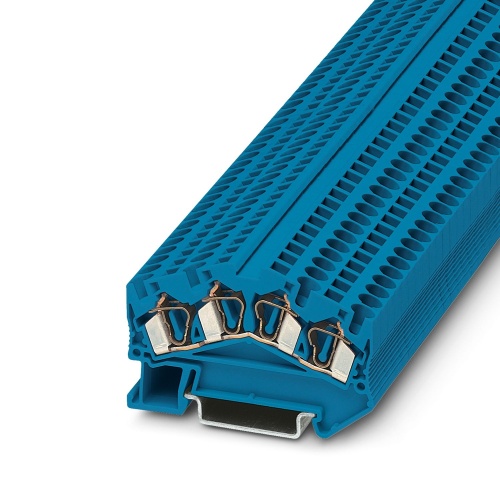

Phoenix Contact 3036301 Feed-through terminal block STS 4-QUATTRO BU
Normally In Stock
Code: 63517
STS 4-QUATTRO BU Phoenix 3036301 Multi-conductor terminal block Spring-cage connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.27
Sale Price
$3.56
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3036301 The terminal block has a voltage rating of 800V and is capable of handling up to 32A of current, accommodating four connections using a spring-cage method. The cross-sectional area ranges from 0.08mm2 to 6mm2, with an overall level rating of one. It comes in two mounting types, NS35/7.5 and NS35/15, and features a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Ground terminal blocks of the same shape are available
Downloads
Phoenix 3036301 CAD data International.dxfPhoenix 3036301 CAD data International.pdfPhoenix 3036301 CAD data International.stpPhoenix 3036301 Certification English.pdfPhoenix 3036301 Certification International.pdfPhoenix 3036301 Manufacturers declaration International.pdfPhoenix 3036301 Safety note English.pdfPhoenix 3036301 Tender Text English.zipPhoenix 3036301 User instructions for the Ex Area English.pdf
