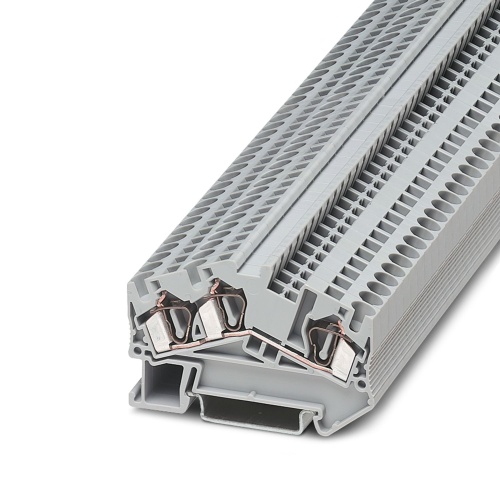

Phoenix Contact 3031665 Feed-through terminal block STS 4-TWIN
Normally In Stock
Code: 63511
STS 4-TWIN Phoenix 3031665 Multi-conductor terminal block Spring-cage connection 800 V 32 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.10
Sale Price
$3.42
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031665 The feed-through terminal block features a nominal voltage of 800 V and a maximum current rating of 32 A. It has three connections, utilizing a spring-cage connection method. The rated cross section is specified as 4 mm2, with a minimum and maximum cross-sectional area range of 0.08 mm2 to 6 mm2. Mounting options include the NS 35/7,5 and NS 35/15 types, with all having a gray color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Same shape and pitch as the feed-through terminal blocks
Cross connection to adjacent feed-through terminal blocks with the consistent FBS ... plug-in bridge system
Downloads
Phoenix 3031665 CAD data International.dxfPhoenix 3031665 CAD data International.pdfPhoenix 3031665 CAD data International.stpPhoenix 3031665 Certification English.pdfPhoenix 3031665 Certification International.pdfPhoenix 3031665 Data Sheet English.pdfPhoenix 3031665 Manufacturers declaration International.pdfPhoenix 3031665 Safety note English.pdfPhoenix 3031665 Tender Text English.zipPhoenix 3031665 User instructions for the Ex Area English.pdf
