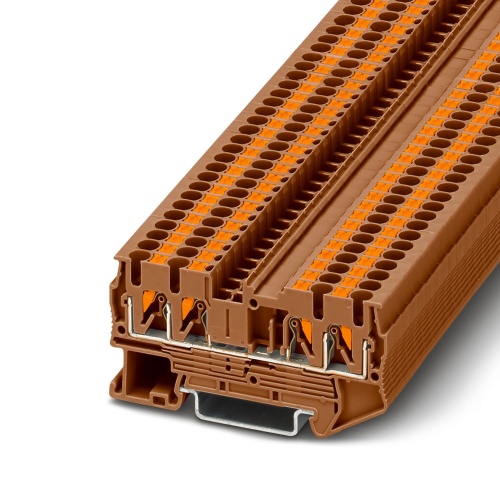

Phoenix Contact 1176302 Feed-through terminal block PT 2,5-QUATTRO BN
Normally In Stock
Code: 63494
PT 2,5-QUATTRO BN Phoenix 1176302 Multi-conductor terminal block Push-in connection 800 V 24 Amp brown Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.28
Sale Price
$2.73
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1176302 A feed-through terminal block with specifications that include a nominal voltage of 800V, a maximum current capacity of 24A, and connections available through a push-in method. The rated cross-sectional area is 2.5mm², with adjustable cross-sections ranging from 0.14-4mm². This terminal block is designed for mounting using the NS35/7.5 or NS35/15 type, and is marked in brown color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Min Wire Size
26
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Brown
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
Tested for railway applications
