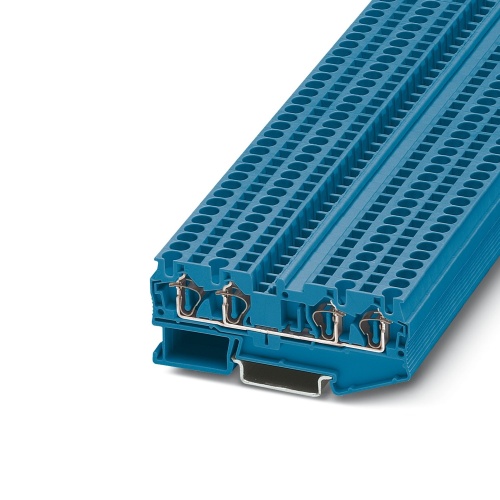

Phoenix Contact 3031458 Feed-through terminal block ST 4-QUATTRO BU
Normally In Stock
Code: 63489
ST 4-QUATTRO BU Phoenix 3031458 Multi-conductor terminal block Spring-cage connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$3.91
Sale Price
$3.26
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031458 A feed-through terminal block has a nominal voltage of 800 V and can handle a nominal current of up to 32 A, with four connections made using a spring-cage connection method. The rated cross-section is 4 mm2, spanning one level, ranging from 0.08 mm2 to 6 mm2, and it comes in two mounting types: NS 35/7,5 and NS 35/15, featuring a blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Cross connection to any number of terminal blocks with the consistent FBS ... plug-in bridge system
Compact potential distributors, the double connection enables four conductors to be connected on one potential
Tested for railway applications
Downloads
Phoenix 3031458 CAD data International.dxfPhoenix 3031458 CAD data International.pdfPhoenix 3031458 CAD data International.stpPhoenix 3031458 Certification English-2.pdfPhoenix 3031458 Data Sheet English.pdfPhoenix 3031458 Manufacturers declaration International-2.pdfPhoenix 3031458 Manufacturers declaration International-3.pdfPhoenix 3031458 Manufacturers declaration International.pdfPhoenix 3031458 Safety note English.pdfPhoenix 3031458 Tender Text English.zipPhoenix 3031458 User instructions for the Ex Area International.pdf
