Code: 63487

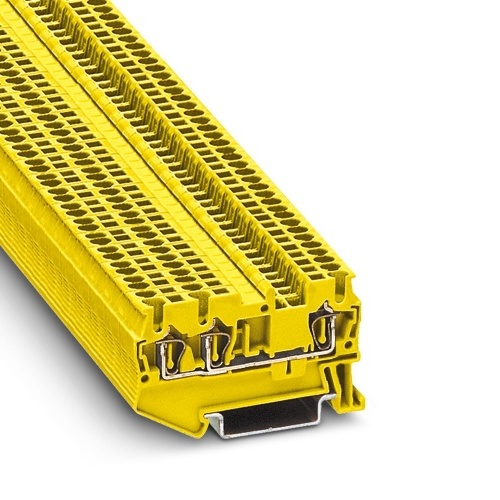

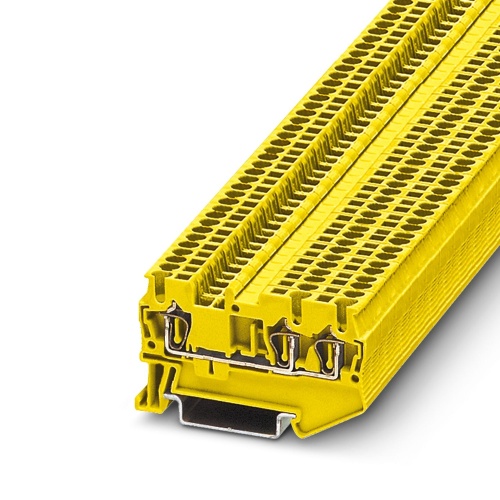

Phoenix Contact 3037261 Feed-through terminal block ST 1,5-TWIN YE
Normally In Stock
ST 1,5-TWIN YE Phoenix 3037261 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp yellow Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.12
Sale Price
$1.77
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3037261 The terminal block has a nominal voltage of 500 V and can handle a nominal current of 17.5 A with three connections made using a spring-cage connection method. The rated cross-section is 1.5 mm², ranging from 0.08 mm² to 1.5 mm², and it comes in two mounting types: NS 35/7,5 and NS 35/15. Additionally, the terminal block has a yellow color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Yellow
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3037261 CAD data International.dxfPhoenix 3037261 CAD data International.pdfPhoenix 3037261 CAD data International.stpPhoenix 3037261 Certification English-2.pdfPhoenix 3037261 Manufacturers declaration International-2.pdfPhoenix 3037261 Manufacturers declaration International.pdfPhoenix 3037261 Safety note English.pdfPhoenix 3037261 Tender Text English.zipPhoenix 3037261 User instructions for the Ex Area International.pdf
