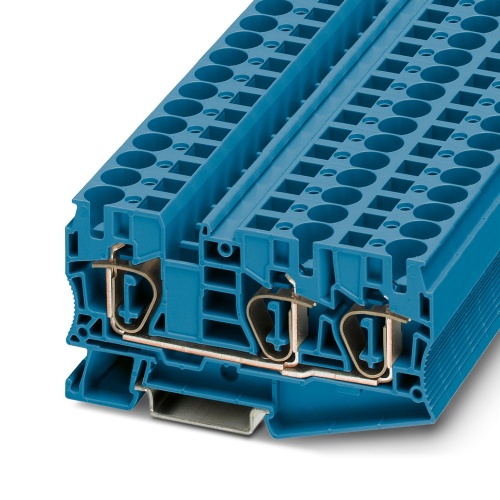

Phoenix Contact 3035292 Feed-through terminal block ST 10-TWIN BU
Normally In Stock
Code: 63486
ST 10-TWIN BU Phoenix 3035292 Multi-conductor terminal block Spring-cage connection 1000 V 57 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$6.94
Sale Price
$5.78
MUST BUY IN PACKS OF 25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3035292 A feed-through terminal block features a nominal voltage of 1000 V and can handle a nominal current of up to 57 A, accommodating three connections via a spring-cage connection system with a rated cross-section ranging from 0.2 mm2 to 16 mm2 across one level of mounting, available in types NS 35/7.5 and NS 35/15, and characterized by a blue color designation.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The ST ...‑TWIN three-conductor spring cage terminal blocks are a space-saving alternative to standard feed-through terminal blocks where potential distribution with conductor cross sections of 10 and 16 mm² is required
The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
Tested for railway applications
Ideal as potential distributors in ring feeder systems
Terminal blocks with a nominal cross section of 2.5 or 4 mm² can be combined without additional wiring effort using the RB ST...(2,5/4) reducing bridge
