Code: 63480

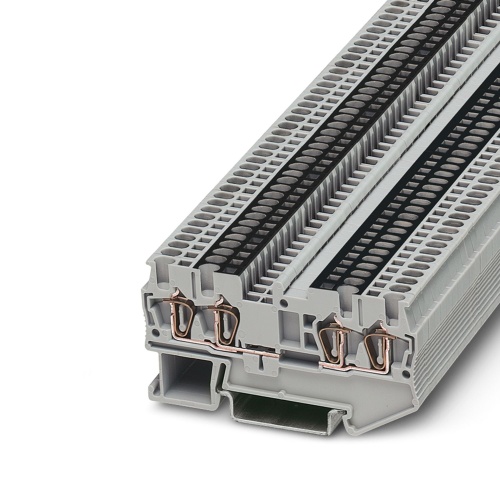

Phoenix Contact 3038600 Feed-through terminal block ST 1,5-QUATTRO-U
Normally In Stock
ST 1,5-QUATTRO-U Phoenix 3038600 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.57
Sale Price
$2.14
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038600 A feed-through terminal block features a nominal voltage of 500 V and a nominal current capacity of 17.5 A, with four connections utilizing spring-cage connectors. The rated cross-sectional area ranges from 0.08 mm2 to 1.5 mm2 at one level, and it comes in various mounting types, including NS 35/7,5 and NS 35/15, while the color of these terminals is gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Double marker carriers can be used to clearly mark the feed-through levels
These four-conductor spring-cage terminal blocks feature an interrupted power rail in the terminal center
Downloads
Phoenix 3038600 CAD data International.dxfPhoenix 3038600 CAD data International.pdfPhoenix 3038600 CAD data International.stpPhoenix 3038600 CAD data International.wrlPhoenix 3038600 Data Sheet English.pdfPhoenix 3038600 Manufacturers declaration International.pdfPhoenix 3038600 Safety note English.pdfPhoenix 3038600 Tender Text English.zip
