Code: 63479

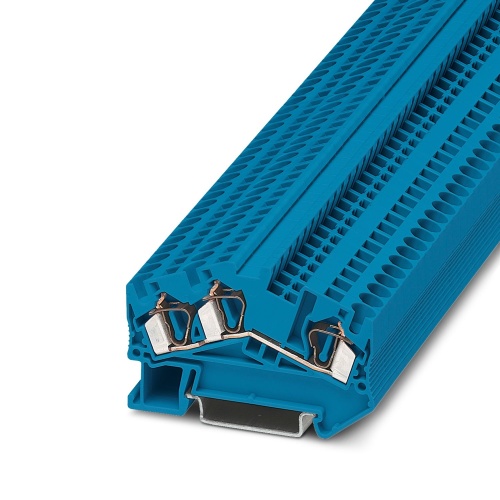

Phoenix Contact 3036291 Feed-through terminal block STS 4-TWIN BU
Normally In Stock
STS 4-TWIN BU Phoenix 3036291 Multi-conductor terminal block Spring-cage connection 800 V 32 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.10
Sale Price
$3.42
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3036291 A feed-through terminal block features a nominal voltage of 800V and a nominal current capacity of 32A, accommodating up to three connections via spring-cage connection method. The rated cross section ranges from 0.08mm² to 6mm², with mounting options available in types NS35/7.5 and NS35/15, all marked with a distinctive blue color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Same shape and pitch as the feed-through terminal blocks
Cross connection to adjacent feed-through terminal blocks with the consistent FBS ... plug-in bridge system
Downloads
Phoenix 3036291 CAD data International.dxfPhoenix 3036291 CAD data International.pdfPhoenix 3036291 CAD data International.stpPhoenix 3036291 Certification English.pdfPhoenix 3036291 Certification International.pdfPhoenix 3036291 Manufacturers declaration International.pdfPhoenix 3036291 Safety note English.pdfPhoenix 3036291 Tender Text English.zipPhoenix 3036291 User instructions for the Ex Area English.pdf
