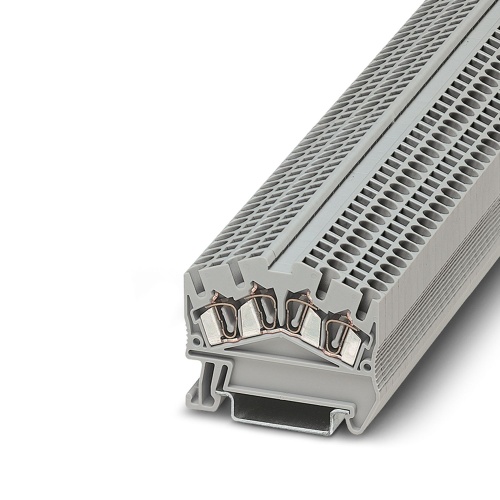

Phoenix Contact 3031746 Feed-through terminal block STS 2,5-QUATTRO
Normally In Stock
Code: 63478
STS 2,5-QUATTRO Phoenix 3031746 Multi-conductor terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.32
Sale Price
$3.60
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031746 A feed-through terminal block with specifications including a nominal voltage of 800V and a maximum current rating of 24A is available. The unit features four connection points secured via spring-cage connections, while the cross-sectional area ranges from 0.08mm2 to 4mm2 per level.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Ground terminal blocks of the same shape are available
Downloads
Phoenix 3031746 CAD data International.dxfPhoenix 3031746 CAD data International.pdfPhoenix 3031746 CAD data International.stpPhoenix 3031746 Certification English.pdfPhoenix 3031746 Certification International.pdfPhoenix 3031746 Data Sheet English.pdfPhoenix 3031746 Manufacturers declaration International.pdfPhoenix 3031746 Safety note English.pdfPhoenix 3031746 Tender Text English.zipPhoenix 3031746 User instructions for the Ex Area English.pdf
