Code: 63476

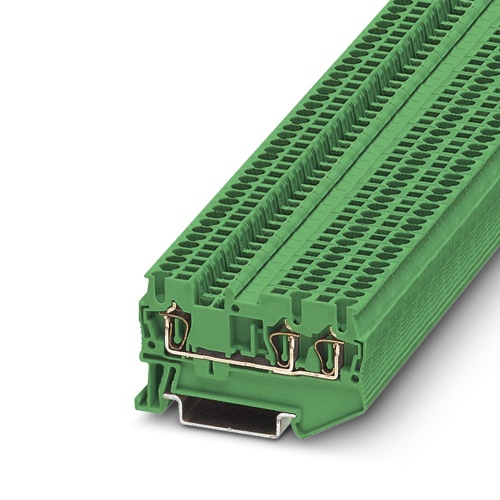

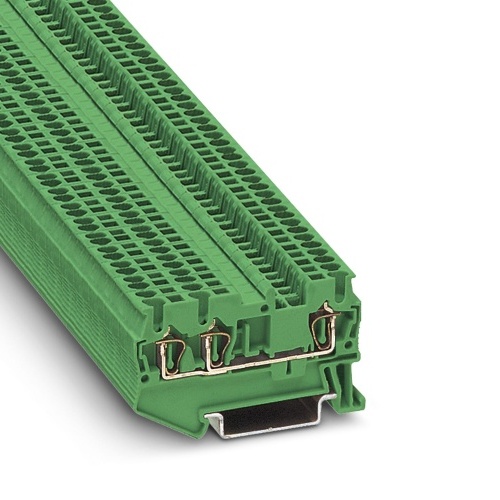

Phoenix Contact 3037287 Feed-through terminal block ST 1,5-TWIN GN
Normally In Stock
ST 1,5-TWIN GN Phoenix 3037287 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp green Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.86
Sale Price
$2.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3037287 A feed-through terminal block features a nominal voltage of 500 V and a nominal current capacity of 17.5 A. It has three connections made via spring-cage connection, with rated cross sections ranging from 0.08 mm2 to 1.5 mm2. The mounting type for this terminal block is NS 35/7.5 or NS 35/15, and it comes in green color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Component Color
Green
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Universal use – connection of small to very large conductor cross-sections
Space-saving with a compact design, multi-conductor terminal blocks, and multi-level terminal blocks
Easy potential distribution with function shafts on each level
Maximum clarity with large marking surfaces
Reduction in logistics costs with the uniform CLIPLINE complete system accessories
Downloads
Phoenix 3037287 CAD data International.dxfPhoenix 3037287 CAD data International.pdfPhoenix 3037287 CAD data International.stpPhoenix 3037287 Certification English-2.pdfPhoenix 3037287 Manufacturers declaration International-2.pdfPhoenix 3037287 Manufacturers declaration International.pdfPhoenix 3037287 Safety note English.pdfPhoenix 3037287 Tender Text English.zipPhoenix 3037287 User instructions for the Ex Area International.pdf
