Code: 63471

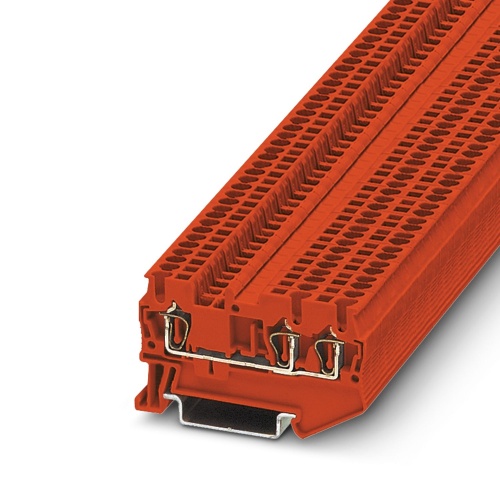

Phoenix Contact 3037274 Feed-through terminal block ST 1,5-TWIN RD
Normally In Stock
ST 1,5-TWIN RD Phoenix 3037274 Multi-conductor terminal block Spring-cage connection 500 V 17.5 Amp red Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.86
Sale Price
$2.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3037274 The feed-through terminal block features a nominal voltage of 500V and a maximum current capacity of 17.5A, with three connections available for setup via a spring-cage connection method. The rated cross-sectional area spans from 0.08mm2 to 1.5mm2, and the mounting type is either NS35/7.5 or NS35/15, while the terminal block is colored in red.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
500 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
4.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Max Wire Size
16
Terminal Block Component Color
Red
Terminal Block Amperage
17.5 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
User-friendly implementation of all potential branching tasks
Space-saving and practical multi-conductor connection without additional bridges
Downloads
Phoenix 3037274 CAD data International.dxfPhoenix 3037274 CAD data International.pdfPhoenix 3037274 CAD data International.stpPhoenix 3037274 Certification English-2.pdfPhoenix 3037274 Manufacturers declaration International-2.pdfPhoenix 3037274 Manufacturers declaration International.pdfPhoenix 3037274 Safety note English.pdfPhoenix 3037274 Tender Text English.zipPhoenix 3037274 User instructions for the Ex Area International.pdf
