Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 63469

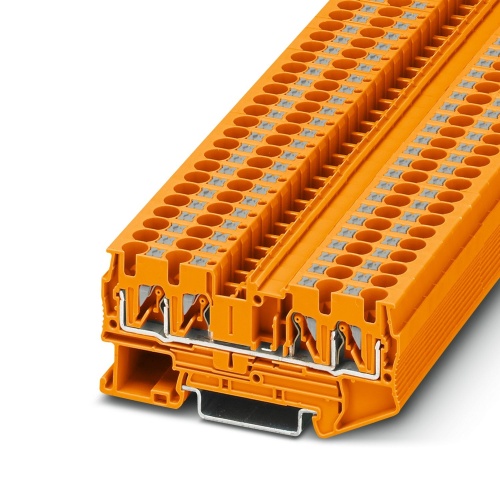

Phoenix Contact 1110405 Feed-through terminal block PT 4-QUATTRO OG
Normally In Stock
PT 4-QUATTRO OG Phoenix 1110405 Multi-conductor terminal block Push-in connection 800 V 32 Amp orange Terminal Blocks
Condition: New
Usually ships within 7-14 days. Call for ship time.$3.40
Sale Price
$2.83
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 1110405 The terminal block features a push-in connection system and is rated for 800V nominal voltage with a maximum of 32A current. It has four connections and allows for cross-sectional wires ranging from 0.2-6mm², while its mounting type includes NS 35/7,5 and NS 35/15 configurations.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
4
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
10
Terminal Block Connection Method
Push-In Connection
Terminal Block Component Color
Orange
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off

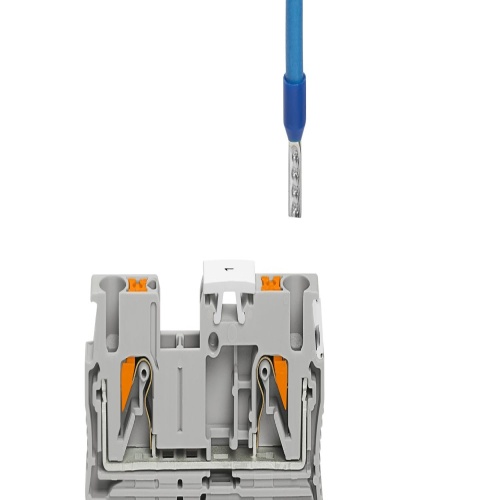

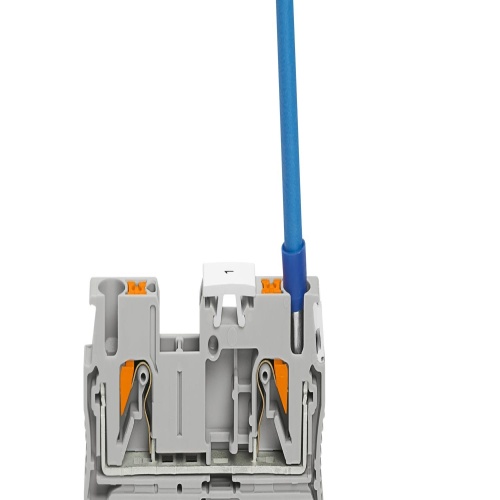

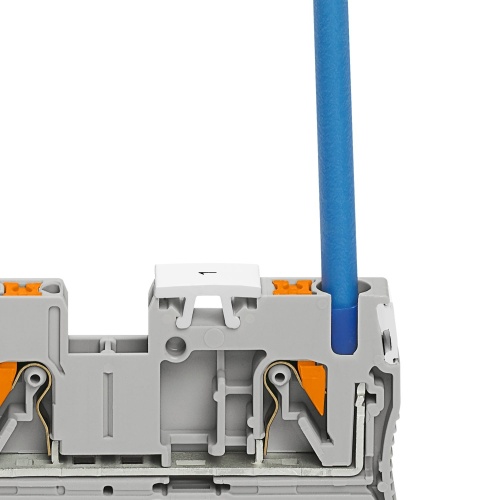

The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
The compact design and front connection enable wiring in a confined space
Tested for railway applications
