Code: 63461

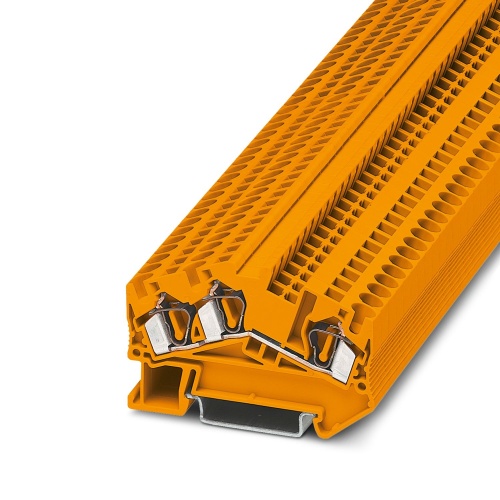

Phoenix Contact 3037533 Feed-through terminal block STS 4-TWIN OG
Normally In Stock
STS 4-TWIN OG Phoenix 3037533 Multi-conductor terminal block Spring-cage connection 800 V 32 Amp orange Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$3.32
Sale Price
$2.77
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description

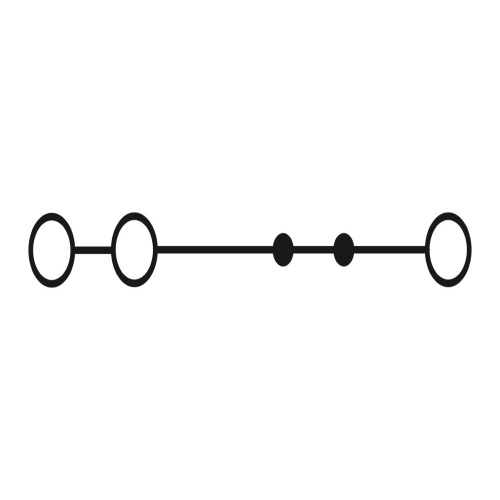

Phoenix Contact 3037533 The terminal block has a nominal voltage of 800V and a maximum current capacity of 32A, accommodating three connections via a spring-cage connection system, with a rated cross-sectional area of 4mm² at one level and ranging from 0.08-6mm² at other levels, and is mounted using the NS35/7.5 and NS35/15 types, in an orange color.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
6.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
3
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
10
Terminal Block Component Color
Orange
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
32 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Sub Component
Multi-Conductor Terminal Block
Features
Cross connection to adjacent feed-through terminal blocks with the consistent FBS ... plug-in bridge system
Same shape and pitch as the feed-through terminal blocks
Downloads
Phoenix 3037533 CAD data International.dxfPhoenix 3037533 CAD data International.pdfPhoenix 3037533 CAD data International.stpPhoenix 3037533 Certification English.pdfPhoenix 3037533 Certification International.pdfPhoenix 3037533 Manufacturers declaration International.pdfPhoenix 3037533 Safety note English.pdfPhoenix 3037533 Tender Text English.zipPhoenix 3037533 User instructions for the Ex Area English.pdf
