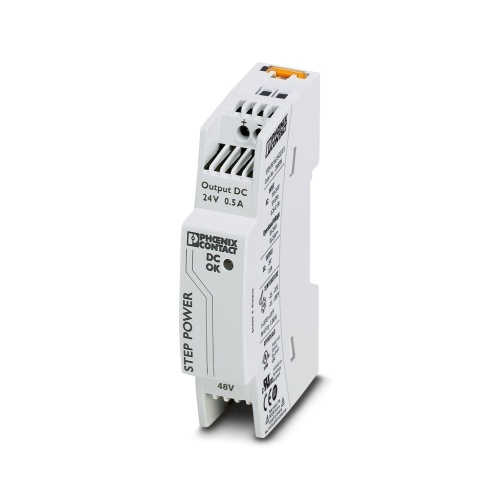

Phoenix Contact 2868716 Power supply STEP-PS/48AC/24DC/0.5
Normally In Stock
Code: 633
STEP-PS/48AC/24DC/0.5 Phoenix Contact STEP-PS/48AC/24DC/0.5. 24 volt .5 Amp Power Supply(Class 1 Div 2) and 43-52 Vac or 60-80 Vdc input voltage. Temperature range of -13 F to 158 F. Din rail mount Screw Connection. (3.54"H x .71"W x 2.4"D).
Condition: New
Usually ships Same Day or Next Day$85.19
Sale Price
$70.99
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2868716 A primary-switched step-down power supply suitable for installation on a DIN rail or direct mounting is available with an AC input that supplies a regulated 24V DC output at a maximum current of 0.5A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
12 Watt
Power Supply Housing
Enclosed
Component
Power Supply
Power Supply Amperage Output
0.5 Amp
Manufacturer
Phoenix Contact
Line
STEP
Power Supply Amperage Output Range
0-5 Amp
Power Supply Voltage Input Range
43 VAC - 52 VAC
Power Supply Voltage Input Range
60 - 80 VDC
Features
Reliable power supply thanks to high MTBF (mean time between failures) of more than 500,000 hours and U/I characteristic curve
Energy savings thanks to maximum energy efficiency and incredibly low idling losses
Flexible mounting by simply snapping onto the DIN rail or screwing onto a level surface
Downloads
Phoenix 2868716 CAD data International.dxfPhoenix 2868716 CAD data International.pdfPhoenix 2868716 CAD data International.stpPhoenix 2868716 CAD Drawing.dxfPhoenix 2868716 Data Sheet English.pdfPhoenix 2868716 Manufacturers declaration English.pdfPhoenix 2868716 Manufacturers declaration International.pdfPhoenix 2868716 Package Slip International.pdfPhoenix 2868716 Spec Sheet.pdfPhoenix 2868716 Tender Text English.zipPhoenix 2868716 User Manual.pdfPhoenix 2868716 Various English.pdf
