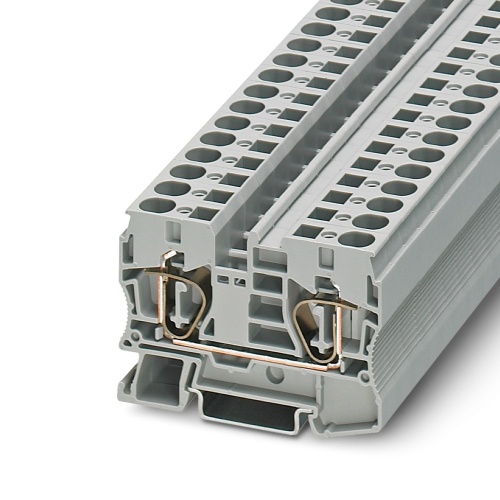

Phoenix Contact 3036110 Feed-through terminal block ST 10
Normally In Stock
Code: 63192
ST 10 Phoenix 3036110 Feed-through terminal block Spring-cage connection 1000 V 57 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.12
Sale Price
$3.43
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.

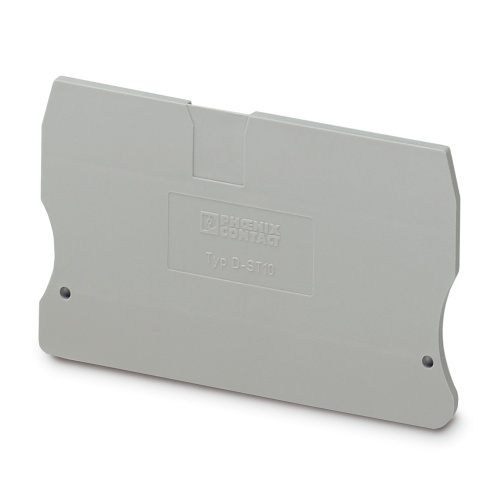

Related Products
Description
Phoenix Contact 3036110 A feed-through terminal block features a nominal voltage of 1000 V and a maximum current rating of 57 A, accommodating up to two connections via spring-cage connection method. The cross-sectional area ranges from 0.2 mm² to 16 mm², while the rated terminal size is NS 35/7.5 and NS 35/15, with an overall mounting type designated as NS 35/7.5 and NS 35/15. The product also comes in a gray coloration.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
1000 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
10.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Amperage
57 Amp
Terminal Block Min Wire Size
24
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Max Wire Size
6
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
The flexible options for reducing bridging in the CLIPLINE complete system can be found in "Accessories for the CLIPLINE complete modular terminal block system"
The double bridge shaft not only enables individual chain bridging, but also reducing bridging to spring-cage terminal blocks with smaller cross sections
Tested for railway applications
Downloads
Phoenix 3036110 CAD data International.dxfPhoenix 3036110 CAD data International.pdfPhoenix 3036110 CAD data International.stpPhoenix 3036110 Certification English-2.pdfPhoenix 3036110 Certification English.pdfPhoenix 3036110 Data Sheet English.pdfPhoenix 3036110 Manufacturers declaration International-2.pdfPhoenix 3036110 Manufacturers declaration International-3.pdfPhoenix 3036110 Manufacturers declaration International.pdfPhoenix 3036110 Product Information English.pdfPhoenix 3036110 Safety note English.pdfPhoenix 3036110 Tender Text English.zipPhoenix 3036110 User instructions for the Ex Area International.pdf
