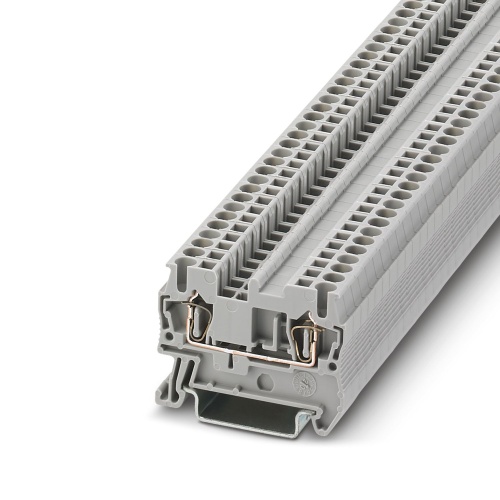

Phoenix Contact 3031212 Feed-through terminal block ST 2,5
Normally In Stock
Code: 63187
ST 2,5 Phoenix 3031212 Feed-through terminal block Spring-cage connection 800 V 24 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$1.90
Sale Price
$1.58
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3031212 A feed-through terminal block features a nominal voltage of 800 V and a nominal current capacity of 24 A, with two connections made using a spring-cage connection method. The rated cross-sectional area is 2.5 mm², with the actual cross-section varying between 0.08 mm² to 4 mm², and it can be mounted in either the NS 35/7.5 or NS 35/15 configurations, which are typically colored gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
The consistent double function shaft offers every opportunity for time-saving potential distribution and accommodating test accessories
As well as saving space, the compact design and front connection enable user-friendly wiring in a small amount of space
The large wiring space enables the use of conductors with ferrules and plastic collars within the nominal cross section
Tested for railway applications
Downloads
Phoenix 3031212 CAD data International.dxfPhoenix 3031212 CAD data International.pdfPhoenix 3031212 CAD data International.stpPhoenix 3031212 Certification English-2.pdfPhoenix 3031212 Certification English.pdfPhoenix 3031212 Data Sheet English.pdfPhoenix 3031212 Manufacturers declaration International-2.pdfPhoenix 3031212 Manufacturers declaration International.pdfPhoenix 3031212 Product Information English.pdfPhoenix 3031212 Safety note English.pdfPhoenix 3031212 Tender Text English.zipPhoenix 3031212 User instructions for the Ex Area International.pdf
