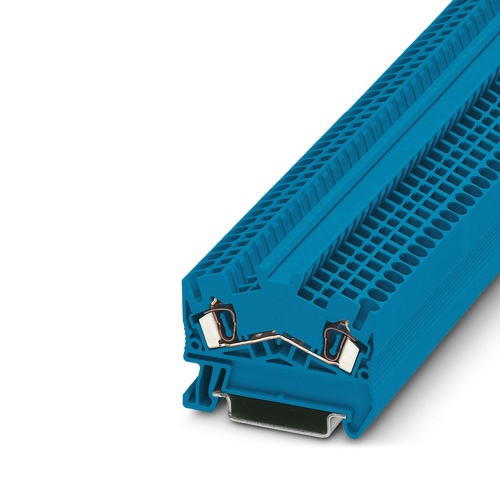

Phoenix Contact 3036408 Feed-through terminal block STS 2,5 BU
Normally In Stock
Code: 63180
STS 2,5 BU Phoenix 3036408 Feed-through terminal block Spring-cage connection 800 V 24 Amp blue Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$2.86
Sale Price
$2.38
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3036408 A feed-through terminal block features a nominal voltage of 800V and a maximum current capacity of 24A, accommodating two connections with a spring-cage connection method. The rated cross-section spans from 0.08mm2 to 4mm2 across one level of the unit, while it is mounted using NS35/7.5 or NS35/15 components and has a blue color scheme.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
5.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Blue
Terminal Block Grounded
Not Grounded
Terminal Block Max Wire Size
12
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Min Wire Size
28
Terminal Block Amperage
24 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
User-friendly wiring thanks to front connection
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
Feed-through terminal blocks with 2, 3 or 4 connections have the same shape
Downloads
Phoenix 3036408 CAD data International.dxfPhoenix 3036408 CAD data International.pdfPhoenix 3036408 CAD data International.stpPhoenix 3036408 Certification English.pdfPhoenix 3036408 Certification International.pdfPhoenix 3036408 Data Sheet English.pdfPhoenix 3036408 Manufacturers declaration International.pdfPhoenix 3036408 Safety note English.pdfPhoenix 3036408 Tender Text English.zipPhoenix 3036408 User instructions for the Ex Area English.pdf
