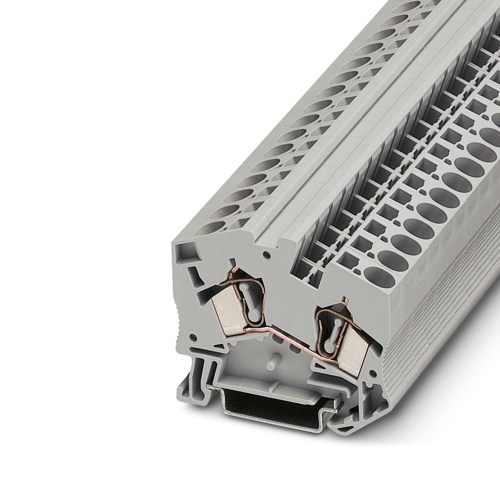

Phoenix Contact 3038121 Feed-through terminal block STS 6
Normally In Stock
Code: 63178
STS 6 Phoenix 3038121 Feed-through terminal block Spring-cage connection 800 V 41 Amp gray Terminal Blocks
Condition: New
Usually Ships Same day or Next Day$4.82
Sale Price
$4.02
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 3038121 The terminal block features a feed-through design with nominal voltage of 800V and a maximum current rating of 41A. It has two connections made via spring-cage connections, with rated cross-sections ranging from 0.2mm² to 10mm². The mounting type is NS35/7.5 or NS35/15, and the terminal block is colored gray.
Specifications
Terminal Block Indication
No Indicator
Terminal Block Voltage Rating
800 Volt
Terminal Block Fused
Not Fused
Terminal Block Width
8.2 mm
Terminal Block Number of Levels
1
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Grounded
Not Grounded
Terminal Block Min Wire Size
24
Terminal Block Max Wire Size
8
Terminal Block Connection Method
Spring-Cage Connection
Terminal Block Amperage
41 Amp
Component
Terminal Block
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
User-friendly wiring thanks to front connection
Angled conductor entry for use in flat terminal boxes
Large space saving when used in concealed wiring systems
Feed-through terminal blocks with 2, 3 or 4 connections have the same shape
Downloads
Phoenix 3038121 CAD data International.dxfPhoenix 3038121 CAD data International.pdfPhoenix 3038121 CAD data International.stpPhoenix 3038121 Data Sheet English.pdfPhoenix 3038121 Manufacturers declaration International.pdfPhoenix 3038121 Safety note English.pdfPhoenix 3038121 Tender Text English.zip
