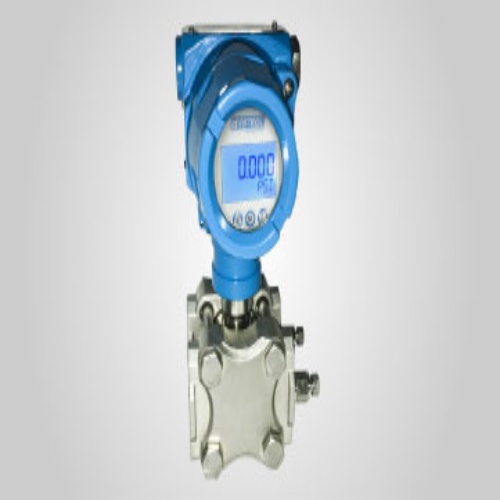

Tek-Trol 3110B-D-4-CSA-1-HC-1 - Tek-Bar 3110B Piezo Differential Pressure Transmitter, 150 psid , ± 0.075%, 0.25" NPT Female
Normally In Stock
Code: 618899
Tek-Trol 3110B-D-4-CSA-1-HC-1 - Tek-Bar 3110B Piezo Differential Pressure Transmitter, 150 psid , ± 0.075%, 0.25" NPT Female
Condition: New
Usually ships within a week$1793.34
Sale Price
$1494.45
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tek-Trol 3110B-D-4-CSA-1-HC-1 - Tek-Bar 3110B Explosion-Proof Piezo Differential Pressure Transmitter which uses the world’s most advance single crystal silicon pressure sensor technology and state of the art encapsulation technology. This is a high performance pressure transmitter with HART®communication protocol. It is used to measure liquid, gas or steam flow as well as liquid level, density, and pressure. It has good accuracy up to 0.075% of URL as well as IP66 water-proof protection.
Specifications
Manufacturer
Tek-Trol
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Measurement Accuracy
0.60%
(Instrument-Sensor) Medium
Liquids
Component
Piezo Differential Pressure Transmitter
(Instrument-Sensor) Medium
Steam
(Instrument-Sensor) Span
150 Psid
(Instrument-Sensor) Medium
Gases
Features
Digital communication HART protocol
High performance
High accuracy up to ±0.075%
It can be used to measure liquid, gas, and steam ow as well as liquid level, density, and pressure
Various Output: 4-20 mA, digital signals with HART° Communication (Optional Modbus RS485 and 1 to 5VDC)
Multiple temperature and linearity compensation to improve accuracy
Fully-sealed and fully isolated silicon pressure sensor
Superior stainless steel process ange
Dual diaphragm overload protection, it can easily cope with overload tests
CSA Class I Div I Approved
