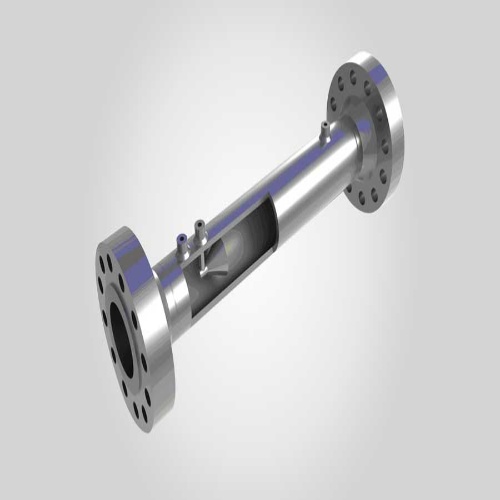

Tek-Trol 1620A-0150-C-09-B-03-C0-D-00-03-A-XX-A-01-A - Tek-DP 1620A Cone Flow Meter, 304L Stainless Steel, 6", ± 0.5%, #600 ANSI Raised Face Weld Neck
Normally In Stock
Code: 618858
Tek-Trol 1620A-0150-C-09-B-03-C0-D-00-03-A-XX-A-01-A - Tek-DP 1620A Cone Flow Meter, 304L Stainless Steel, 6", ± 0.5%, #600 ANSI Raised Face Weld Neck
Condition: New
Usually ships within a week$30456.00
Sale Price
$25380.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tek-Trol 1620A-0150-C-09-B-03-C0-D-00-03-A-XX-A-01-A - Tek-DP 1620A Cone Flow Meter is an advanced differential pressure instrument, which is ideal for use with liquid, steam, gas media in rugged conditions where accuracy, low maintenance, cost are important. With its DP built-in flow conditioning design, the Cone is especially useful in tight-fit and retrofit installations in which the long runs of straight pipe required by Orifice Plates, Venturi Tubes, and other technologies are either impractical or unavailable.
Specifications
Manufacturer
Tek-Trol
(Instrument-Sensor) Measurement Accuracy
0.60%
(Instrument-Sensor) Size
6"
Component
Cone Flow Meter
Features
Accuracy up to ±0.5% of flow rate.
Suitable for 2” to 48” with flanges rating from #150 to #2500 as per ASME.
Simple, robust and reliable.
Extremely immune to flow disturbances.
Eliminates straight run requirements.
Minimize metering footprint and reduce weight.
Maximum installation flexibility.
Low cost and minimal maintenance.
Suitable for difficult or severe applications.
High repeatability.
Full optional verification system ‘PrognosisTM’ available.
