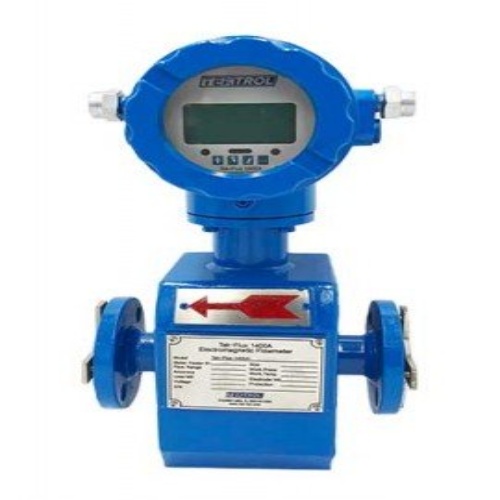

Tek-Trol 1400A-250-1-I-SS-1-1-H - Tek-Flux 1400A Electromagnetic Flow Meter, 10", ± 0.5%, 150# ANSI Flange,
Normally In Stock
Code: 618684
Tek-Trol 1400A-250-1-I-SS-1-1-H - Tek-Flux 1400A Electromagnetic Flow Meter, 10", ± 0.5%, 150# ANSI Flange,
Condition: New
Usually ships within a week$7675.56
Sale Price
$6396.30
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tek-Trol 1400A-250-1-I-SS-1-1-H - Tek-Flux 1400A Electromagnetic flow meter, also called Magmeters, it is a contact instrument used for measuring the volumetric flowrates of any fluid which can adequately conduct electricity in closed pipelines. These instruments are highly accurate, reliable, and stable devices that are used in various high-pressure industrial processes. Tek-Flux 1400A flow meter operates on the basis of Faraday’s Law of Induction. According to this principle, any change in the magnetic flux, linked to an electric circuit, causes an electromotive force (or voltage) to be induced in this circuit. The induced voltage is therefore directly proportional to the rate of change of magnetic flux with time. It can measure highly corrosive mediums such as concentrated acid and concentrated alkaline using PTFE lining material. By using Titanium electrodes, we can measure seawater, various chloride, and hypo-chloride fluids
Specifications
Manufacturer
Tek-Trol
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Measurement Accuracy
0.50%
Component
Electromagnetic Flow Meter
(Instrument-Sensor) Supply Voltage
18-36 VDC
(Instrument-Sensor) Size
10"
Features
Wide range of nominal diameter Size ½” to 28″ (0.04 ft to 2.33 ft) with IP65 protection.
Easy maintenance due to no moving parts.
Uninfluenced by temperature, pressure, viscosity, and density.
Used for wide application, can measure conductive fluid, without reference to fibre, solid or suspending material contained in liquid.
High turndown ratio up to 1:100.
It features high intelligence, with back light LCD display, menu setting control, three grades password
protection, two-way measuring, slight signal removal, auto flow compensation, and other function.
Features high intelligence, which ensure empty pipe detection, self-detection, self-diagnostic functions,
and safety alarms for upper and lower limit.
Features SMART excitation, which ensures zero-point stability, high reliability, and low power consumption.
Lining and electrode available in various materials which can measure nearly all conductive fluids.
It has multiple signal output, pulse or Modbus RS485 or HART® or 4 to 20 mA.
The power supply system has good voltage vibration ability.
Meters batching and blending totalization.
