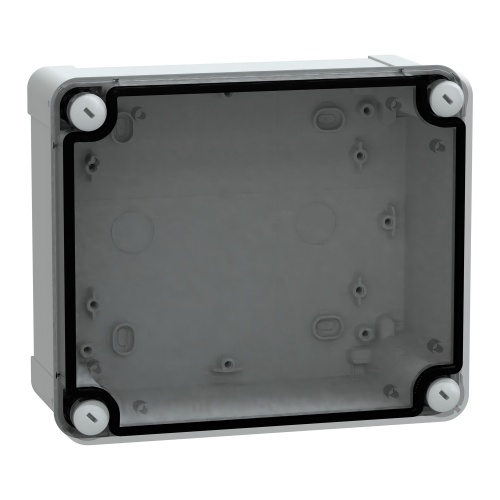

Schneider Electric NSYTBP19168T Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 7.6" x 6.46" x 3.43" (HxWxD)
Normally In Stock
Code: 592119
Schneider Electric NSYTBP19168T - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 7.6" x 6.46" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$44.47
Sale Price
$37.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric Thalassa TBP enclosure ( NSYTBP19168T) is a gray polycarbonate enclosure designed for wall mounting in outdoor locations. With a removable cover secured by captive screws, it offers electrical insulation class II protection. The low transparent cover is fixed with plastic screws, and the enclosure withstands temperatures from -13 to 176 °F (-25 to 80 °C). It has an internal width of 5.91 in, height of 6.89 in, and depth of 3.15 in. The Thalassa TBP enclosure is fire resistant up to 1760 °F (960 °C).
Specifications
Enclosure Composition
Polycarbonate
Enclosure Height
7.6"
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
6.46"
Features
Thalassa TBP industrial PC box with transparent PC cover H20

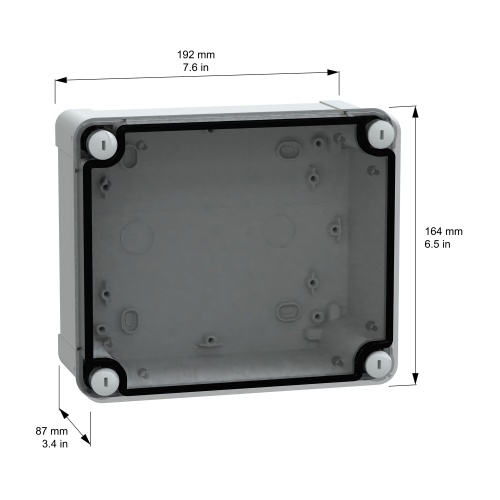

Int is 175 x 150 x 80 mm
Ext is 193 x 164 x 87 mm

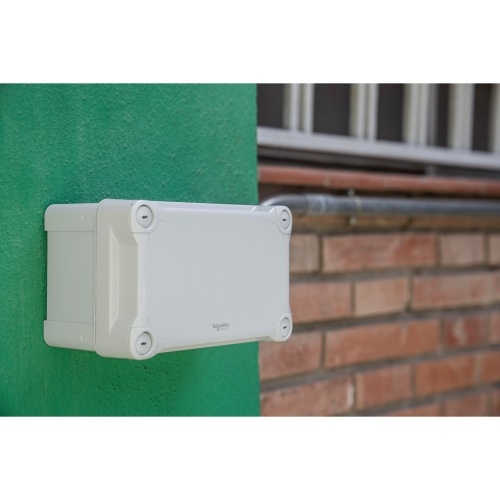

Wall mounted enclosure
Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
