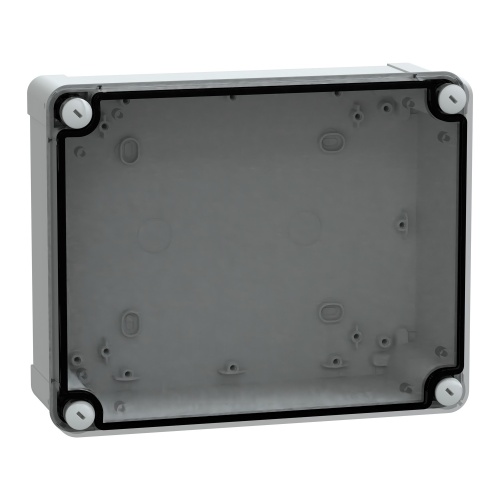

Schneider Electric NSYTBP24198T Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 9.49" x 7.64" x 3.43" (HxWxD)
Normally In Stock
Code: 592112
Schneider Electric NSYTBP24198T - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 9.49" x 7.64" x 3.43" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$61.75
Sale Price
$51.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

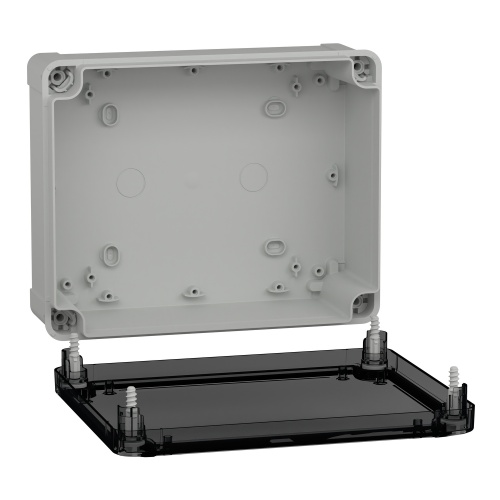

Schneider Electric NSYTBP24198T from the Thalassa range is a wall-mounted enclosure designed for outdoor use. Made of polycarbonate material, it features a captive screw flat outside sealed area with a low transparent cover and plastic screw fixing. With an Electrical Insulation Class II rating, it offers a wide operating temperature range of -13…176 °F (-25…80 °C). The enclosure is fire-resistant up to 1760 °F (960 °C) and provides ample space with internal dimensions of 6.89 in (175 mm) width, 8.86 in (225 mm) height, and 3.15 in (80 mm) depth.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Height
9.49"
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Enclosure Depth
3.43"
Line
Thalassa TBP
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Enclosure Width
7.64"
Features
Thalassa TBP industrial PC box with transparent PC cover H20
Int is 225 x 175 x 80 mm

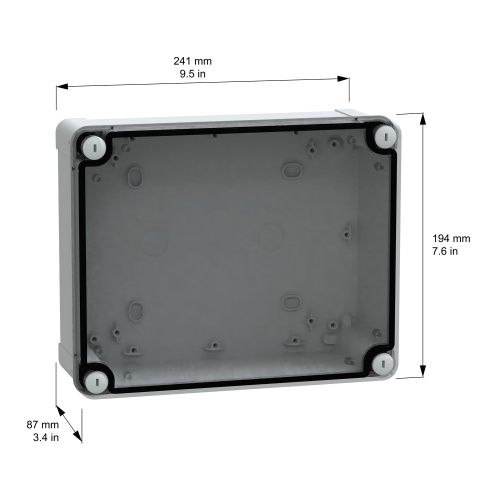

Ext is 241 x 194 x 87 mm

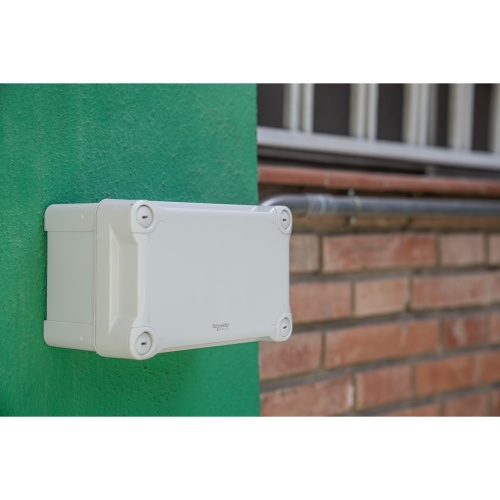

Wall mounted enclosure
Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
