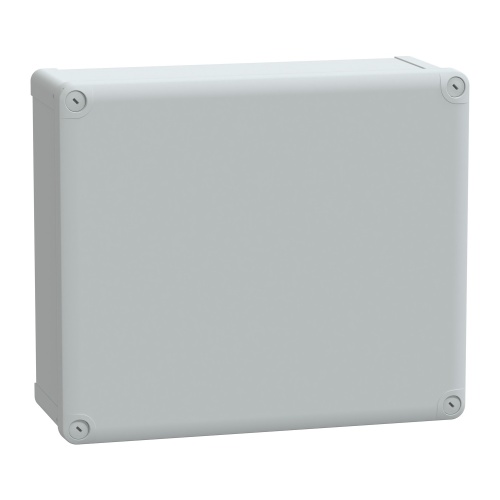

Schneider Electric NSYTBP342912 Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 13.43" x 11.46" x 5.04" (HxWxD)
Normally In Stock
Code: 592088
Schneider Electric NSYTBP342912 - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 13.43" x 11.46" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$171.54
Sale Price
$142.95
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP342912 Thalassa TBP enclosure is a wall-mounted outdoor solution made of high-quality polycarbonate material. It features a captive screw flat outside sealed area for added security and a gray RAL 7035 color. This Class II electrical insulation product comes with a low plain cover and plastic screws for easy fixing. With a wide temperature range (-13…176 °F), fire resistance (1760 °F), and spacious internal dimensions (10.83 x 12.80 x 4.72 in), it offers reliable protection for various applications.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Height
13.43"
Enclosure Width
11.46"
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Features
Thalassa TBP industrial PC box with opaque PC cover H20
Int is 325 x 275 x 120 mm

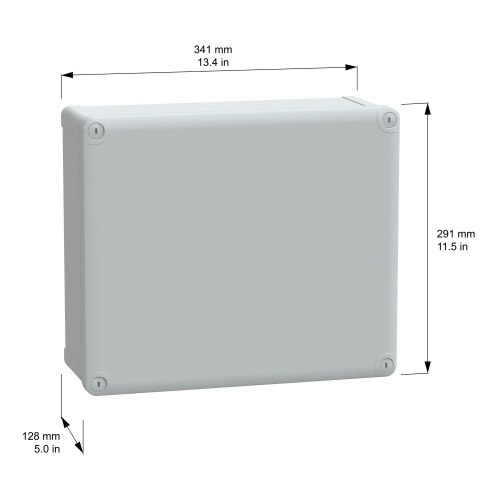

Ext is 341 x 291 x 128 mm
Wall mounted enclosure
Low plain cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
