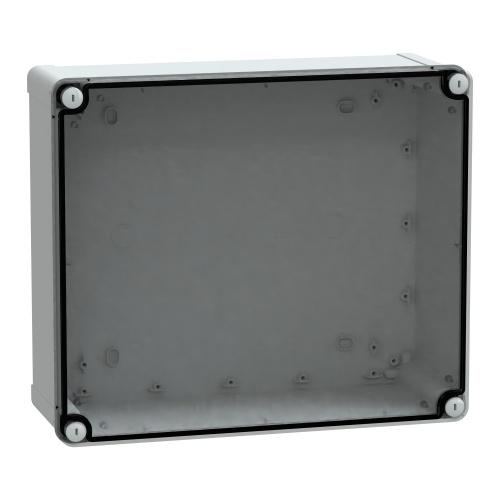

Schneider Electric NSYTBP342912T Thalassa TBP Wall mounted Polycarbonate Enclosure - IP66, 13.43" x 11.46" x 5.04" (HxWxD)
Normally In Stock
Code: 592087
Schneider Electric NSYTBP342912T - Polycarbonate - Captive screw flat outside sealed area - IK08 - IP66 - 13.43" x 11.46" x 5.04" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$103.02
Sale Price
$85.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric NSYTBP342912T from the Thalassa range is a durable polycarbonate enclosure designed for outdoor wall mounting. It features a captive screw flat outside sealed area and a low transparent cover, secured with plastic screws. With an internal dimension of 10.83" x 12.80" x 4.72", it offers ample space and protection, while maintaining an operating temperature range of -13…176 °F. Its fire resistance up to 1760 °F makes it a reliable choice for various applications.
Specifications
Enclosure Composition
Polycarbonate
Manufacturer
Schneider Electric
Enclosure Mount Type
Wall Mount
Component
Non-Metallic Enclosure
Line
Thalassa TBP
Enclosure Height
13.43"
Enclosure Width
11.46"
Enclosure Depth
5.04"
Enclosure Latch Type
Captive Screw
Enclosure Impact Rating
IK08
Features
Thalassa TBP industrial PC box with transparent PC cover H20
Int is 325 x 275 x 120 mm

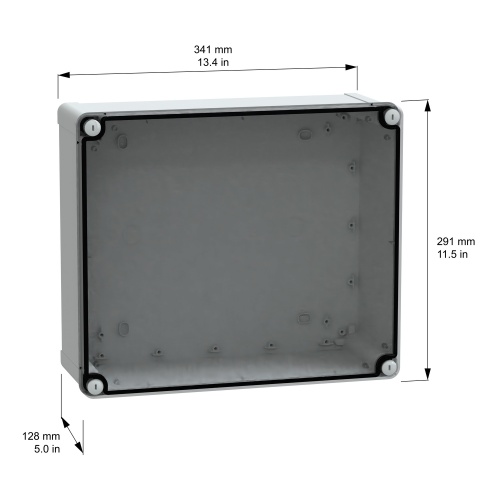

Ext is 341 x 291 x 128 mm
Wall mounted enclosure

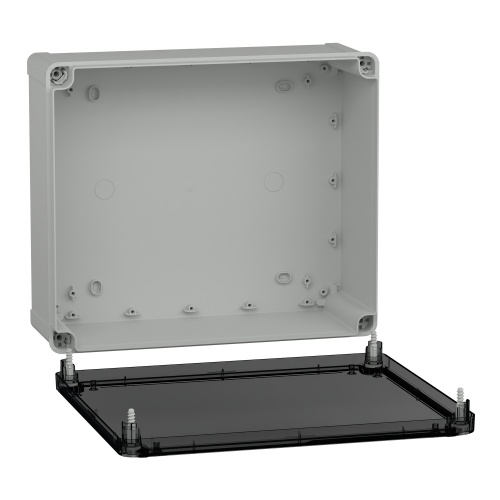

Low transparent cover
Outside sealed is flat screwdriver captive screw lock
Certifications is DEMKO, SEMKO, TÜV, UL
UL 508 A Standard
Fire resistance 960°
Polycarbonate made
IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II
Set of 5
Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
