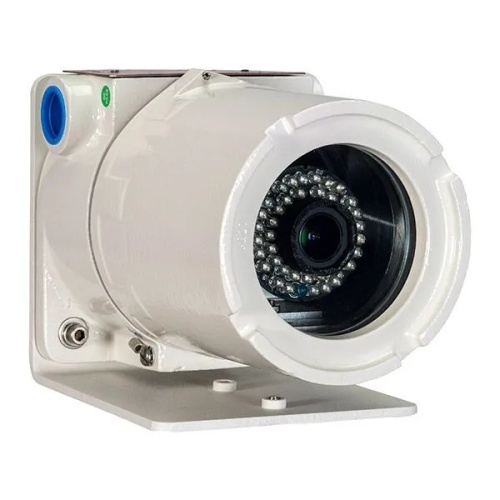

IVC AMZ-3041-2-24D Explosion Proof 1080p Camera, 24 VDC - NEMA 4X, IP66
Normally In Stock
Code: 591696
IVC AMZ-3041-2-24D - Zoom Ratio - Imager: 1/3” DPS CMOS - NEMA 4X, IP66 - 24 VDC - 5.50” H x 5.50” W x 8” D
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3425.76
Sale Price
$2854.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
IVC AMZ-3041-2-24D - The Auto Iris CCTV camera features a DC iris with F1.4, 525 TV lines (NTSC) or 625 TV lines (PAL) resolution, and a 1/3" DPS CMOS imager. It operates in temperatures from -40° to 60°C, with NEMA Type 4x and IP66 protection. UL1203:2013 Ed.5+R:30Jan2020 compliant, it offers a minimum illumination of 0.3 Lux (color) and 0.06 Lux (b/w), with a S/N Ratio of 50 dB or better. Weighing 8.1 lbs. (Aluminum Enclosure) or 10.2 lbs. (Stainless Steel Enclosure), its power consumption is 0.7A @ 12 VDC or 0.4A @ 24 VDC. White balance is automatic, and it comes with VBS 1.0V p-p/75 Ohms video output. Order as per voltage required. Regulatory approvals conform to UL STD 61010-1 +. Storage temperature ranges from -45° to 65°C. Suitable for wall mounting.
Specifications
Component
Fixed Analog Camera
Imager
1/3” DPS CMOS
Mount
Wall Mount Standard
Power Consumption
0.7A @ 12 VDC
Power Consumption
0.4A @ 24 VDC
Protection Class
NEMA 4X
Protection Class
IP66
Manufacturer
IVC
Voltage Required
24 VDC
Minimum Illumination
0.3 Lux (Color)
Minimum Illumination
0.06 Lux (B/W)
Features
Indoor/outdoor fixed camera
-40° to 60° range of operation
12 VDC, 24 VDC, 24 VAC versions
Wide dynamic range
Certified for use in hazardous areas
