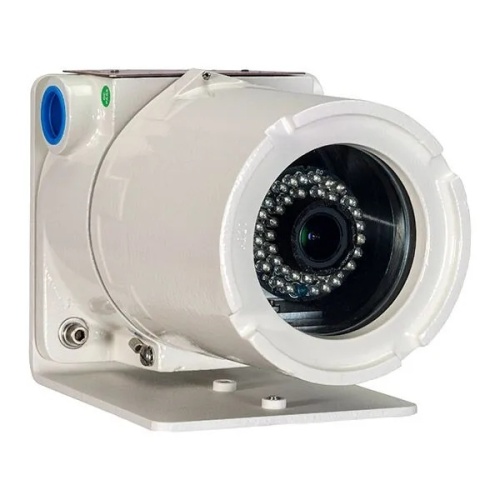

IVC AMZ-3041-2-12 Explosion Proof 1080p Camera, 12 VDC - NEMA 4X, IP66
Normally In Stock
Code: 591694
IVC AMZ-3041-2-12 - Zoom Ratio - Imager: 1/3” DPS CMOS - NEMA 4X, IP66 - 12 VDC - 5.50” H x 5.50” W x 8” D
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$3425.76
Sale Price
$2854.80
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
IVC AMZ-3041-2-12 - This wall mount camera features a 1/3” DPS CMOS imager, DC auto iris, and F1.4 aperture for crisp images. With 525 TV lines (NTSC) or 625 TV lines (PAL) and low light sensitivity of 0.3 Lux (color) / 0.06 Lux (b/w), it offers high-quality surveillance. NEMA Type 4x/IP66 rated for outdoor use, operational in -40° to 60° C temperatures. UL 61010-1 compliant, with 50 dB S/N ratio and VBS 1.0Vp-p/75 Ohms video output. Available in aluminum (8.1 lbs) or stainless steel (10.2 lbs) enclosures. Voltage requirements vary.
Specifications
Component
Fixed Analog Camera
Voltage Required
12 VDC
Imager
1/3” DPS CMOS
Mount
Wall Mount Standard
Power Consumption
0.7A @ 12 VDC
Power Consumption
0.4A @ 24 VDC
Protection Class
NEMA 4X
Protection Class
IP66
Manufacturer
IVC
Minimum Illumination
0.3 Lux (Color)
Minimum Illumination
0.06 Lux (B/W)
Features
Indoor/outdoor fixed camera
-40° to 60° range of operation
12 VDC, 24 VDC, 24 VAC versions
Wide dynamic range
Certified for use in hazardous areas
