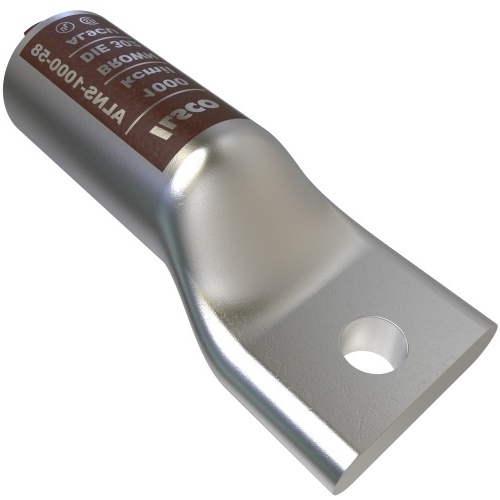

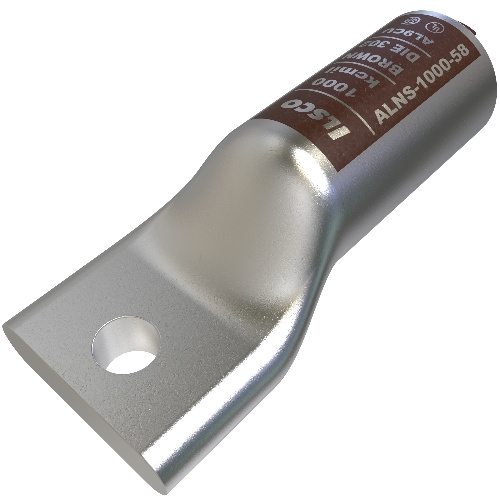

Ilsco ALNS-1000-58 Compression Lug - Aluminum, 1000 MCM, Stranded, 35 kV, 5/8", Silver
Normally In Stock
Code: 589843
Ilsco ALNS-1000-58 - Surecrimp Aluminum Compression Lug, Conductor Size 1000, 1 Hole, 5/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$201.24
Sale Price
$154.80
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALNS-1000-58 - Surecrimp Aluminum Compression Lug for 1000 kcmil conductors, with 1 hole and 5/8in bolt size. Tin plated, UL and CSA listed, suitable for 35 kV applications. Features DE-OX® coating, long barrel design, and a square tang end shape. Can accommodate stranded and solid aluminum conductors. Durable and reliable connector for various applications.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
5/8"
Terminal for Wire Gauge
1000 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
