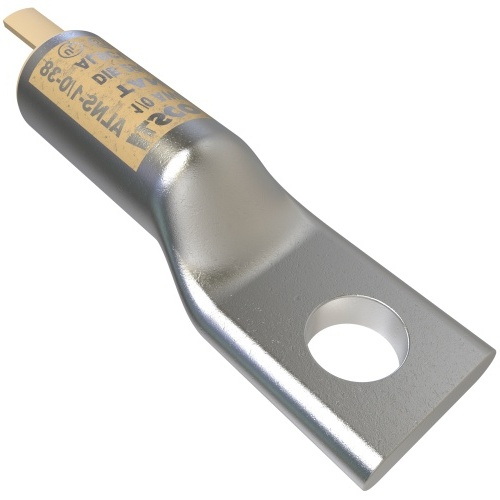

Ilsco ALNS-1/0-38 Compression Lug - Aluminum, 1/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 588823
Ilsco ALNS-1/0-38 - Surecrimp Aluminum Compression Lug, Conductor Size 1/0, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$23.50
Sale Price
$18.08
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco ALNS-1/0-38 - Surecrimp Aluminum Compression Lug for 1/0 conductor size, 1 hole, 3/8in bolt size. Long barrel, tin plated, UL/CSA listed. Dual rated for copper/aluminum. 35 kV voltage rating, compression connection. Mounting hole diameter 10.3124mm. Tang dimensions 22.86mm x 20.8026mm x 5.4356mm. Ideal for electrical connections requiring high reliability and durability.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
1/0 AWG
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
