Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

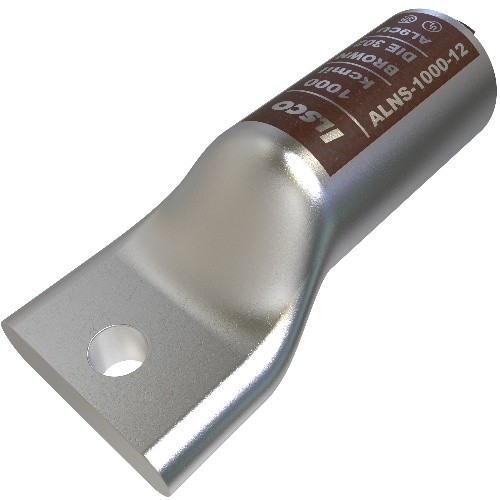

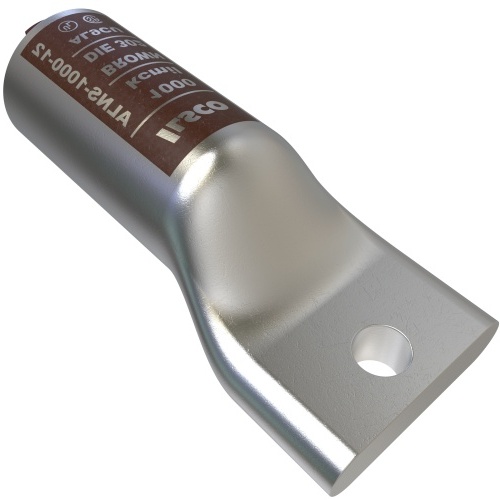

Ilsco ALNS-1000-12 Compression Lug - Aluminum, 1000 MCM, Stranded, 35 kV
Normally In Stock
Code: 589842
Ilsco ALNS-1000-12 - Surecrimp Aluminum Compression Lug, Conductor Size 1000, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$158.39
Sale Price
$121.84
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALNS-1000-12 - The Surecrimp Aluminum Compression Lug is a durable connector with a long barrel design and a 1/2in bolt size. It is dual rated and suitable for a conductor size of 1000 kcmil. This lug is UL and CSA listed, tin plated, and suitable for 35 kV voltage. It does not have a sight window.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
1000 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚C
