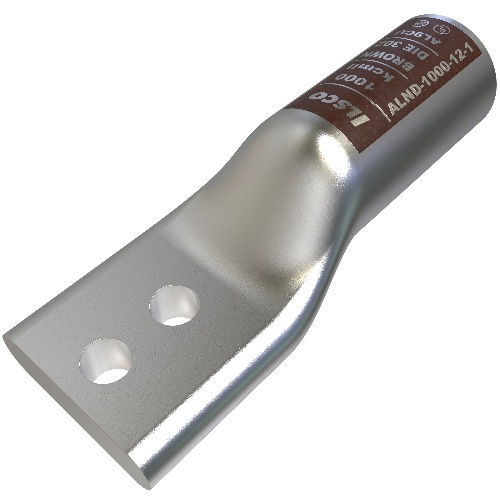

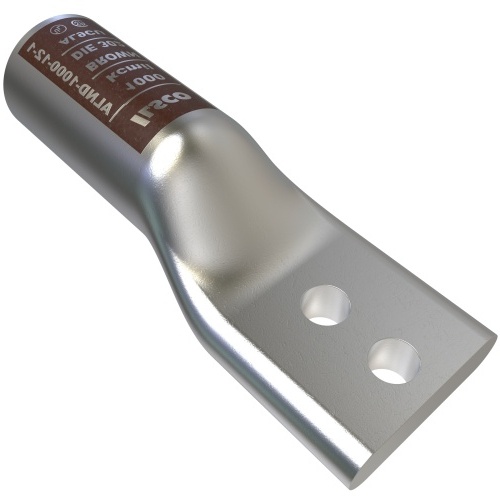

Ilsco ALND-1000-12-1 Compression Lug - Aluminum, 1000 MCM, Stranded, 35 kV
Normally In Stock
Code: 589825
Ilsco ALND-1000-12-1 - Surecrimp Aluminum Compression Lug, Conductor Size 1000, 2 Holes, 1/2in Bolt Size, 1in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$208.79
Sale Price
$160.61
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-1000-12-1 - Surecrimp Aluminum Compression Lug for 1000 kcmil conductors, featuring 2 holes for 1/2in bolts with 1in spacing. Long barrel design with tin plating, UL and CSA listed. Dual rated for copper and aluminum, with a voltage rating of 35 kV. Tang dimensions: 2.125in x 2.514in x 0.66in. DE-OX® included.
Specifications
Color
Silver
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal Stud Size Opening
1/2"
Terminal for Wire Gauge
1000 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
