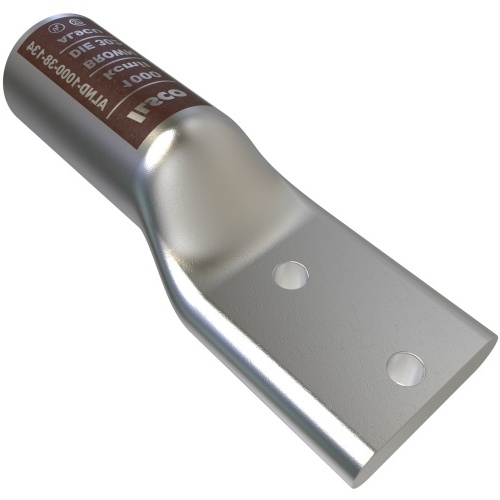

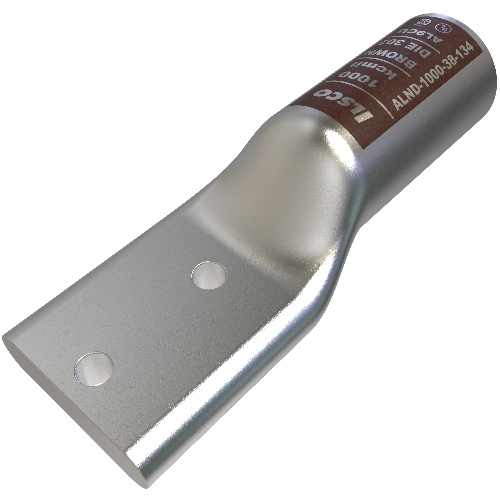

Ilsco ALND-1000-38-134 Compression Lug - Aluminum, 1000 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 589827
Ilsco ALND-1000-38-134 - Surecrimp Aluminum Compression Lug, Conductor Size 1000, 2 Holes, 3/8in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$208.79
Sale Price
$160.61
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco ALND-1000-38-134 - Ilsco Surecrimp Aluminum Compression Lug is a durable connector for 1000 kcmil copper/aluminum conductors. 2-hole design with 3/8in bolt size and long barrel. Tin plated finish, UL/CSA listed, 35kV voltage rating. Features DE-OX® technology and meets UL486A/B standards. Tang dimensions: 2.6in length, 2.514in width, 0.66in thickness.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Aluminum
Terminal for Wire Gauge
1000 MCM
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Features
Manufactured from high strength aluminum alloy
Electro-Tin plated
Chamfered entry
Color coded end cap
Ink marked
Two bolt hole pattern
Pre-filled with DE-OX® oxide inhibiting compound
Range taking
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Dual rated AL9CU to 90˚ C
