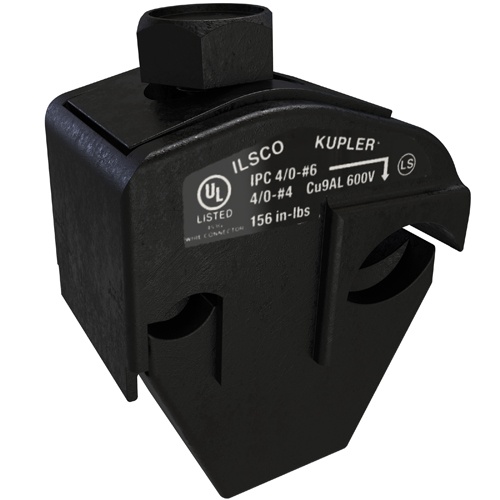

Ilsco IPC-4/0-6 Insulation Piercing Connector - Copper, 4/0-4 AWG, Solid, 600 V, 75 Amp, Black
Normally In Stock
Code: 589745
Ilsco IPC-4/0-6 - KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 4/0-4, Tap Range 6-14, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$30.34
Sale Price
$23.34
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco IPC-4/0-6 - Ilsco's KUP-L-Tap Insulation Piercing Connector is dual rated for 4/0-4 main conductor and 6-14 tap range. Featuring tin-plated copper construction, UL and CSA certifications, and a temperature rating of 90°C. Ideal for parallel wire orientation with 1 port tap and 75A CU / 60A AL amperage rating. Drive size 1/2, 1 pole.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Insulation Material
Nylon
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Component
Insulation Piercing Connector
Terminal for Wire Gauge
4/0-4 AWG
Features
Body is molded from tough, resilient glass-filled nylon
Compact design
Tin plated copper contact teeth
Insulation piercing
Perforated end tabs
Pre-filled with silicone lubricant
Versatile
Increased safety
Horizontal line grid
Temperature rating 90˚ C
