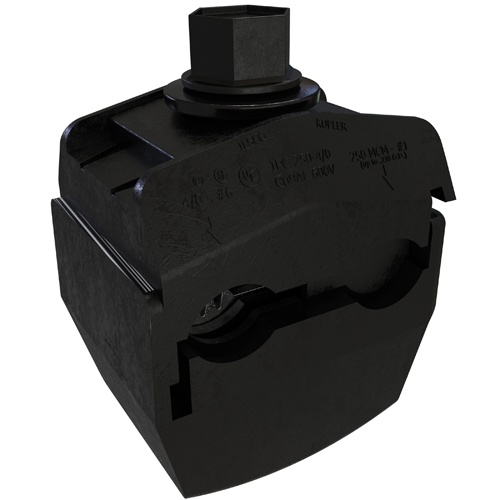

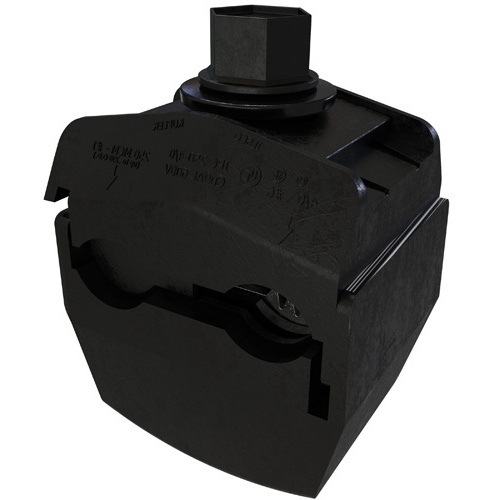

Ilsco IPC-250-4/0 Insulation Piercing Connector - Copper, 250-1 AWG, Stranded, 600 V, 260 Amp, Black
Normally In Stock
Code: 589008
Ilsco IPC-250-4/0 - KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 250-1, Tap Range 4/0-6, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$69.54
Sale Price
$53.49
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco IPC-250-4/0 - Ilsco KUP-L-Tap Insulation Piercing Copper Connector is a dual-rated connector suitable for main conductors 250-1 and tap range 4/0-6. Tin plated with UL and CSA certifications, it features nylon insulation, 600V voltage rating, and 260A CU / 205A AL amperage rating. External hex drive, steel clamping hardware, and 1 port tap.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Insulation Material
Nylon
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Component
Insulation Piercing Connector
Terminal for Wire Gauge
250-1 AWG
Features
Body is molded from tough, resilient glass-filled nylon
Compact design
Tin plated copper contact teeth
Insulation piercing
Perforated end tabs
Pre-filled with silicone lubricant
Versatile
Increased safety
Horizontal line grid
Temperature rating 90˚ C
