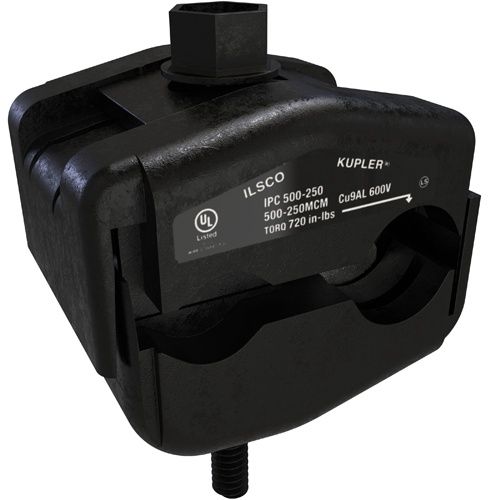

Ilsco IPC-500-250 Insulation Piercing Connector - Copper, 500-250 MCM, Stranded, 600 V, 290 Amp, Black
Normally In Stock
Code: 589012
Ilsco IPC-500-250 - KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-250, Tap Range 250-4, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$151.97
Sale Price
$116.90
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco IPC-500-250 - The KUP-L-Tap Insulation Piercing Copper Connector is a dual-rated connector designed for main conductor ranges of 500-250 kcmil and tap ranges of 250-4 kcmil. It features a tin-plated finish, nylon insulation, and a temperature rating of 90°C. UL and CSA listed with a voltage rating of 600V. Suitable for parallel wire orientation with a clamping bolt size of M10 x 1.5-6g. Ampere rating for Copper is 290 Amps and Aluminum is 230 Amps. Ideal for mechanical connections in electrical applications.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Insulation Material
Nylon
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Terminal for Wire Gauge
500-250 MCM
Component
Insulation Piercing Connector
Features
Body is molded from tough, resilient glass-filled nylon
Compact design
Tin plated copper contact teeth
Insulation piercing
Perforated end tabs
Pre-filled with silicone lubricant
Versatile
Increased safety
Horizontal line grid
Temperature rating 90˚ C
Code: 589012
Ilsco IPC-500-250 Insulation Piercing Connector - Copper, 500-250 MCM, Stranded, 600 V, 290 Amp, Black
$151.97
Sale Price
$116.90
