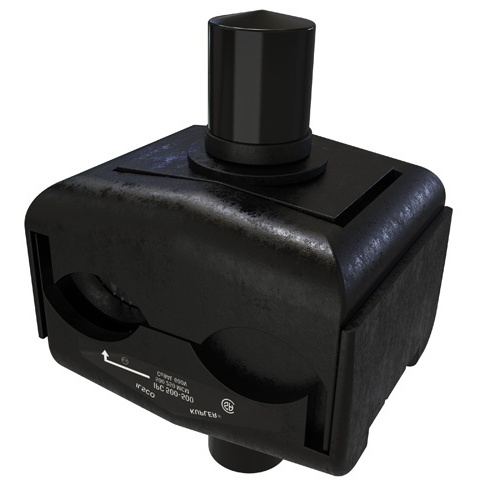

Ilsco IPC-500-500 Insulation Piercing Connector - Copper, 500-300 MCM, Stranded, 600 V, 430 Amp, Black
Normally In Stock
Code: 587740
Ilsco IPC-500-500 - KUP-L-Tap Insulation Piercing Copper Connector, Dual Rated, Main Conductor Range 500-300, Tap Range 500-250, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$381.80
Sale Price
$293.69
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco IPC-500-500 - The KUP-L-Tap Insulation Piercing Copper Connector is a dual-rated connector suitable for main conductor ranges 500-300 and tap ranges 500-250. It is made of copper with tin plating, UL and CSA listed, and has a temperature rating of 90°C. The connector is suitable for use with stranded aluminum conductors, rated for 600V with an amperage rating of 430A for copper and 350A for aluminum. The connector features a black nylon insulation and a mechanical connection with an external hex drive type for easy installation. Suitable for parallel wire orientation, it has a clamping bolt size of 1/2-13 and is made of alloy steel with a tin finish. Number of ports is 1 with 1 wire binding screw per port.
Specifications
Color
Black
Manufacturer
Ilsco
Material
Copper
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Insulation Material
Nylon
Connector Finish
Tin
Voltage Rating
600 V
Number of Connectors
2
Component
Insulation Piercing Connector
Terminal for Wire Gauge
500-300 MCM
Features
Body is molded from tough, resilient glass-filled nylon
Compact design
Tin plated copper contact teeth
Insulation piercing
Perforated end tabs
Pre-filled with silicone lubricant
Versatile
Increased safety
Horizontal line grid
Temperature rating 90˚ C
