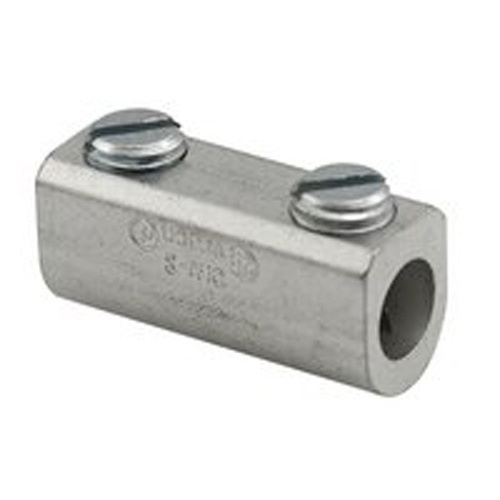

Ilsco SPA-250 Splice - Aluminum, 250-6 AWG, Stranded, 35 kV, Silver
Normally In Stock
Code: 588100
Ilsco SPA-250 - Aluminum Splicer/Reducer, Dual Rated, Conductor Range 250-6, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$31.93
Sale Price
$24.56
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco SPA-250 - Aluminum Splicer/Reducer for 250-6 conductor range, with UL, CSA, NEMA S-588-1 ratings. Dual rated, tin plated, 90°C temperature rating, suitable for 35kV voltage. Mechanical connection, featuring 5/16 internal hex drive. Includes 1 wire binding screw per port, suitable for parallel wire orientation. Durable aluminum construction with tin finish.
Specifications
Color
Silver
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Terminal for Wire Gauge
250-6 AWG
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Rounded bottoms
Large screw diameters
Wire stop in center
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
