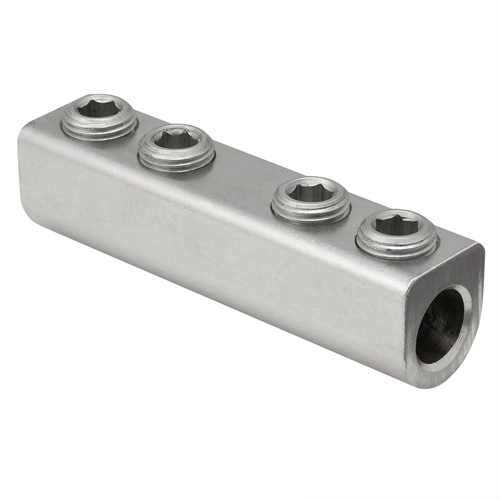

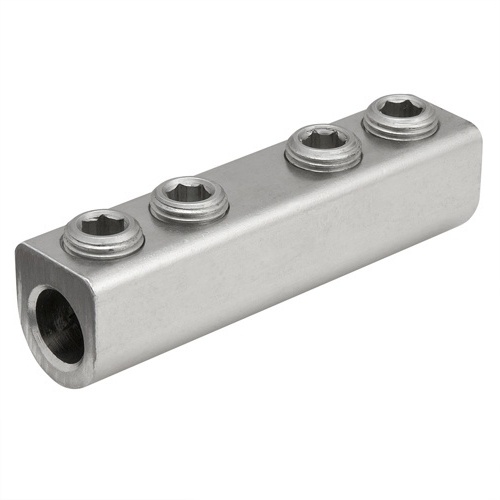

Ilsco SPA-750 Splice - Aluminum, 750-250 MCM, Stranded, 35 kV, Silver
Normally In Stock
Code: 587639
Ilsco SPA-750 - Aluminum Splicer/Reducer, Dual Rated, Conductor Range 750-250, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$100.14
Sale Price
$77.03
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco SPA-750 - The Aluminum Splicer/Reducer is dual-rated for conductors ranging from 750-250 kcmil. It is tin-plated, UL and CSA approved, with a NEMA Code of S-588-1. Suitable for copper and aluminum stranded conductors. Rated for 35 kV with a temperature rating of 90°C. Mechanical connection with 2 wire binding screws per port.
Specifications
Color
Silver
Component
Splice
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Number of Connectors
2
Terminal for Wire Gauge
750-250 MCM
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Rounded bottoms
Large screw diameters
Wire stop in center
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Rated to 90˚ C
