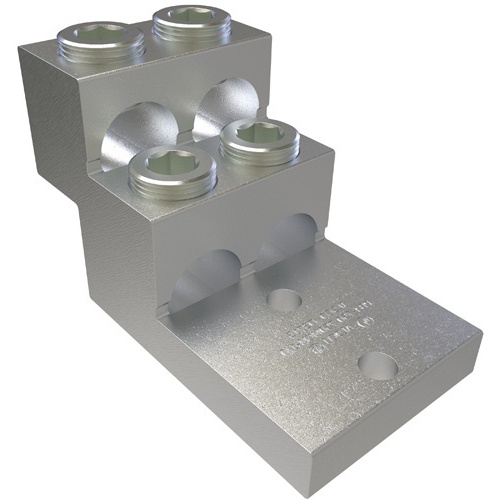

Ilsco PB4-750 Panelboard Lug - Aluminum, 750-1/0 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 587631
Ilsco PB4-750 - Aluminum Panelboard Lug, Dual Rated, Conductor Range 750-1/0, 4 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$197.28
Sale Price
$151.75
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PB4-750 - The Aluminum Panelboard Lug is dual rated for conductor range 750-1/0, with 4 ports and 2 holes. Tin plated with UL and CSA certifications, it has a 3/8in bolt size and 1-3/8in hole spacing. Suitable for 35kV applications, it is made of high-quality aluminum with copper conductors. Ideal for mechanical connections.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Component
Panelboard Lug
Terminal for Wire Gauge
750-1/0 AWG
Number of Connectors
4
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Stacked design
Rated to 90˚ C
