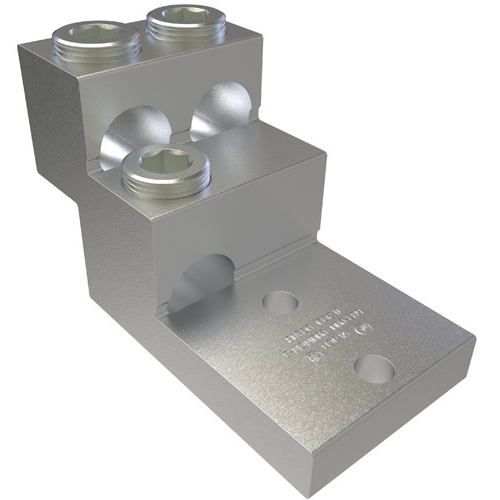

Ilsco PB3-600 Panelboard Lug - Aluminum, 600-2 AWG, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 587627
Ilsco PB3-600 - Aluminum Panelboard Lug, Dual Rated, Conductor Range 600-2, 3 Ports, 2 Holes, 3/8in Bolt Size, 1-3/8in Hole Spacing, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$153.58
Sale Price
$118.14
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco PB3-600 - The Aluminum Panelboard Lug is dual rated and UL/CSA/NEMA listed for conductor range 600-2. It features 3 ports, 2 holes, and a 3/8in bolt size. Suitable for copper and aluminum stranded conductors, with a 90°C temperature rating and 35 kV voltage rating. Mounting hole spacing is 1-3/8in.
Specifications
Color
Silver
Terminal Stud Size Opening
3/8"
Manufacturer
Ilsco
Material
Aluminum
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Connector Finish
Tin
Voltage Rating
35 Kv
Component
Panelboard Lug
Terminal for Wire Gauge
600-2 AWG
Number of Connectors
3
Features
Manufactured from high strength 6061-T6 aluminum alloy
Electro-tin plated
Chamfered wire entry
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
Stacked design
Rated to 90˚ C
