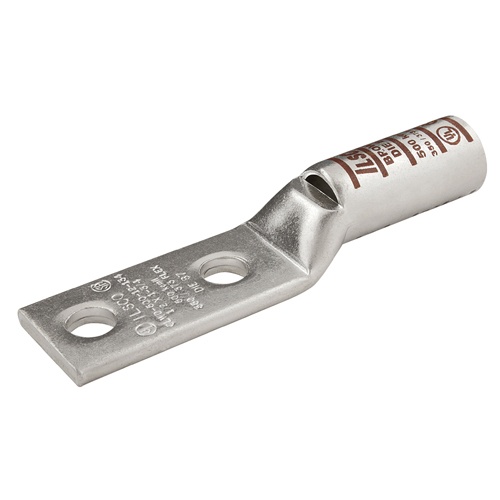

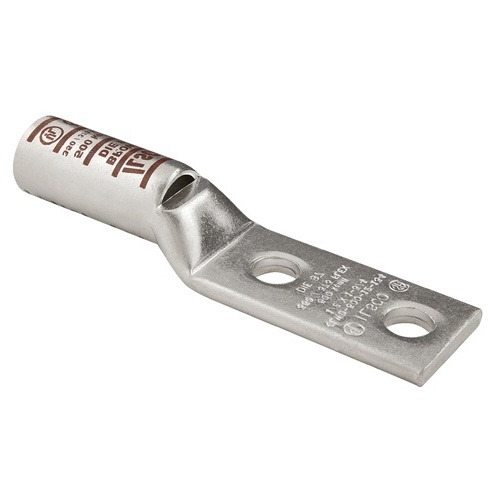

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Ilsco CLWD-600-38-1 Compression Lug - Copper, 600 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Code: 587395
Ilsco CLWD-600-38-1 - Surecrimp Copper Compression Lug, Conductor Size 600, 2 Holes, 3/8in Bolt Size, 1in Hole Spacing, Long Barrel, Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$60.11
Sale Price
$46.24
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CLWD-600-38-1 - Surecrimp Copper Compression Lug for 600 kcmil stranded copper conductors, 2 holes for 3/8" bolts with 1" spacing. Long barrel with sight window, tin plated, UL and CSA listed. Temperature rating of 90°C, voltage rating of 35 kV. UL Control Number 453G, CSA File Number LR-29601. Mounting hole diameter 0.406", spacing 1".
Specifications
Bolt Size
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Conductor Type
Stranded
Number of Mounting Holes
2
Wire Gauge
600 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
