Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

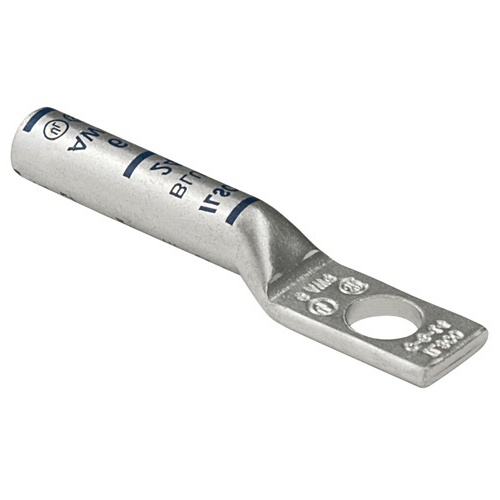

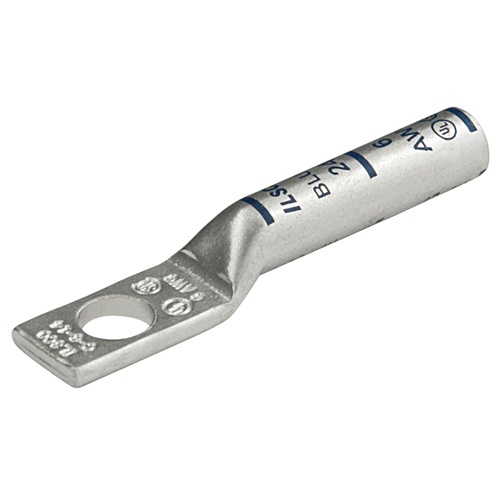

Ilsco CLNS-3/0-516 Compression Lug - Copper, 3/0 AWG, Stranded, 35 kV, 5/16", Silver
Normally In Stock
Code: 586767
Ilsco CLNS-3/0-516 - Surecrimp Copper Compression Lug, Conductor Size 3/0, 1 Hole, 5/16in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME*NON-CANCELLABLE, NON-RETURNABLE*
$16.38
Sale Price
$12.60
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ilsco CLNS-3/0-516 - The Surecrimp Copper Compression Lug is UL and CSA listed with a 5/16in bolt size, suitable for 3/0 stranded copper conductors. This long barrel lug is tin plated and features a one-hole design with no sight window. Rated for 35kV, it is ideal for direct burial applications.
Specifications:
- Conductor Size: 3/0 Stranded Copper
- Bolt Size: 5/16in
- Barrel Type: Long
- Direct Burial: Yes
- Voltage Rating: 35kV
- Color: Silver
- Material: Copper
- Connector Finish: Tin
- Mounting Hole Type: Thru
- Number of Mounting Holes: 1
- Tang End Shape: Square
- Outside Diameter: 0.609in
- Inside Diameter: 0.484in
- Temperature Rating: 90°C
- UL / CULUS Specification: UL 486A/B Listed
- CSA Standard: C22.2 No. 65-03
- NEBS Rating: Level 3
Suitable for a range of applications, this compression lug offers a reliable connection for your electrical needs.
Specifications
Bolt Size
5/16"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Connector Finish
Tin
Conductor Type
Stranded
Number of Mounting Holes
2
Wire Gauge
3/0 AWG
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
