Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 586171

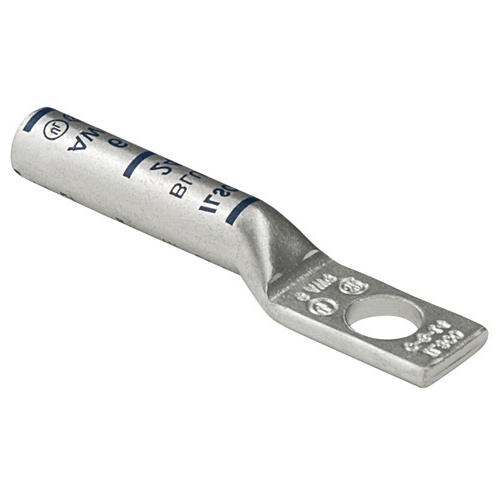

Ilsco CLNS-500-38 Compression Lug - Copper, 500 MCM, Stranded, 35 kV, 3/8", Silver
Normally In Stock
Ilsco CLNS-500-38 - Surecrimp Copper Compression Lug, Conductor Size 500, 1 Hole, 3/8in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$36.75
Sale Price
$28.27
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CLNS-500-38 - Surecrimp Copper Compression Lug for 500 kcmil stranded copper conductors, 1-hole design with 3/8in bolt, tin-plated finish. UL and CSA listed, 35kV voltage rating, suitable for direct burial. Long barrel with DE-OX® for reliable connections. Barrel dimensions: 2.25in length, 1.052in OD. Tang dimensions: 0.875in length, 1.535in width.
Specifications
Bolt Size
3/8"
Component
Compression Lug
Manufacturer
Ilsco
Material
Copper
Conductor Type
Solid
Connector Finish
Tin
Number of Mounting Holes
1
Wire Gauge
500 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
