Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

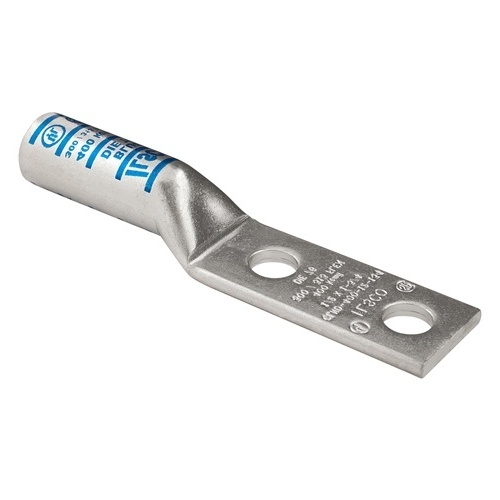

Ilsco CLND-500-12-134 Compression Lug - Copper, 500 MCM, Flex, 35 kV
Normally In Stock
Code: 586150
Ilsco CLND-500-12-134 - Surecrimp Copper Compression Lug, Conductor Size 500, 2 Holes, 1/2in Bolt Size, 1-3/4in Hole Spacing, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Condition: New
CALL FOR LEAD TIME$51.04
Sale Price
$39.26
NO MOQ/PACK QUANTITY. QTY 1 = QTY 1
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Ilsco CLND-500-12-134 - Surecrimp Copper Compression Lug with 500 kcmil conductor size, 2 holes, 1/2in bolt size, and long barrel. Tin plated, UL/CSA/NEMA listed. Suitable for 35 kV, 90°C applications with Flex conductor type. Direct burial capable, 1.052in outside diameter, 2.25in barrel length, and 180° connecting angle. DE-OX® free, NEBS Level 3 rated.
Specifications
Component
Compression Lug
Manufacturer
Ilsco
Connector Finish
Tin
Conductor Type
Stranded
Bolt Size
1/2"
Number of Mounting Holes
1
Wire Gauge
500 MCM
Features
Manufactured from high strength seamless copper tubing
Electro-Tin plated
Chamfered entry
Color coded
Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
UL Listed and CSA Certified with ILSCO and major competitor’s compression tools
UL467 Listed 500 kcmil - 10 AWG , #10 - #2 SOL
For direct bury 500 kcmil - 10 grounding and bonding
Rated to 90˚ C
